Mini Mini Workshop Manual (1996-2000)06 · Engine management system - MEMS
06 · Engine

Intake air temperature (iat) sensor

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Intake air temperature (iat) sensor
Engine management system - MEMSIntake air temperature (iat) sensor

INTAKE AIR TEMPERATURE (IAT) SENSOR

Service repair no - 18.30.09

Remove

Intake air temperature (iat) sensor – Service repair no - 18.30.09
  1. Disconnect multiplug from IAT sensor.
  2. Remove IAT sensor.

Refit

  1. Clean threads of IAT sensor.
  2. Clean mating faces of IAT sensor and inlet manifold.
  3. Fit IAT sensor to inlet manifold and tighten to 7 Nm.
  4. Connect multiplug to IAT sensor.

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Service repair no - 18.30.10

Remove

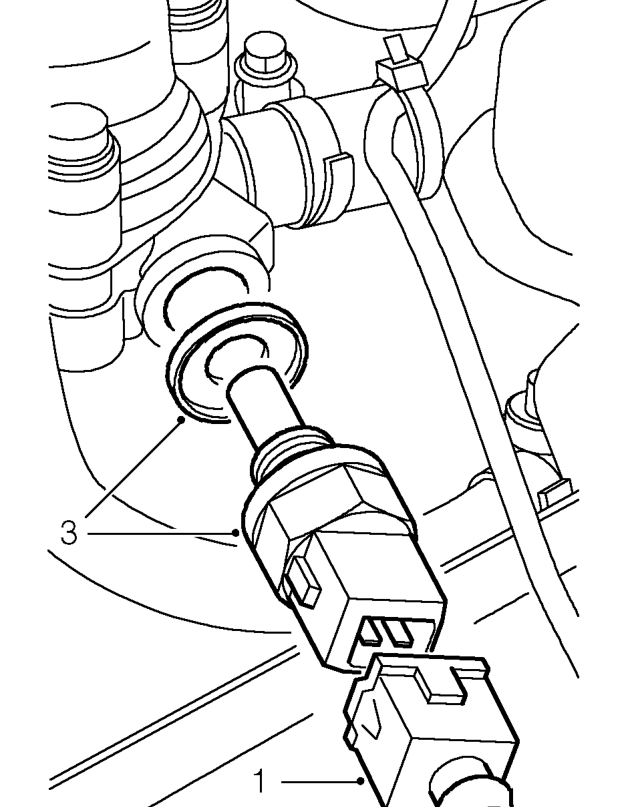

Engine coolant temperature (ect) sensor – Service repair no - 18.30.10
  1. Disconnect multiplug from ECT sensor.
  2. Position container to collect spillage.
  3. Remove ECT sensor and discard sealing washer.
