THROTTLE HOUSING

Service repair no - 19.22.45

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner. See this section.

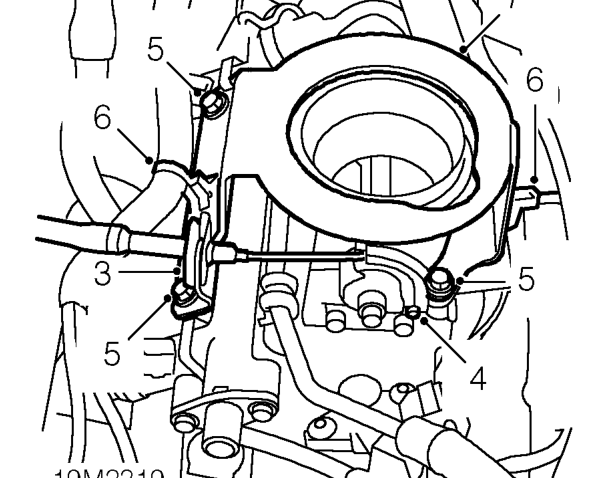

Throttle housing – Remove air cleaner. See this section.
  1. Release throttle cable adjusting nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam and position aside.
  3. Remove 3 bolts securing air cleaner mounting bracket to fuel rail and inlet manifold.
  4. Release 2 clips securing harnesses to mounting bracket.
  5. Remove air cleaner mounting bracket.

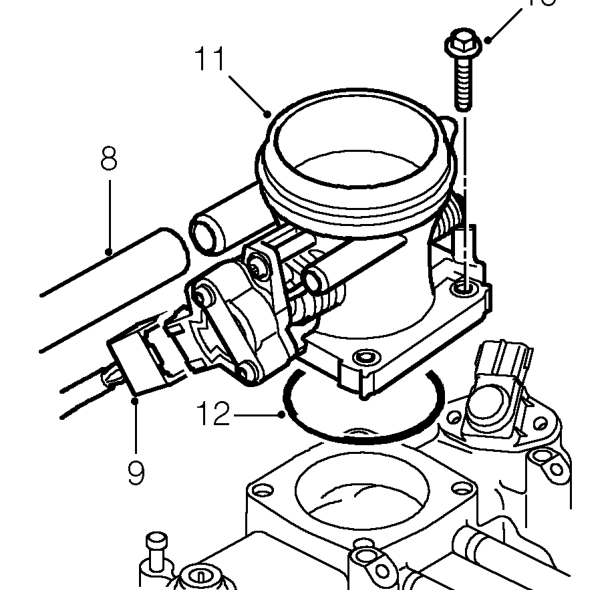

Throttle housing – Remove air cleaner mounting bracket.
  1. Disconnect air bypass hose from throttle body.
  2. Disconnect multiplug from TP sensor.
  3. Remove 3 bolts securing throttle housing to inlet manifold.
  4. Remove throttle housing.
  5. Remove and discard ’O’ ring from throttle housing.
