Engine management system - MEMSSpark plugs

SPARK PLUGS

Service repair no - 18.20.02

Remove

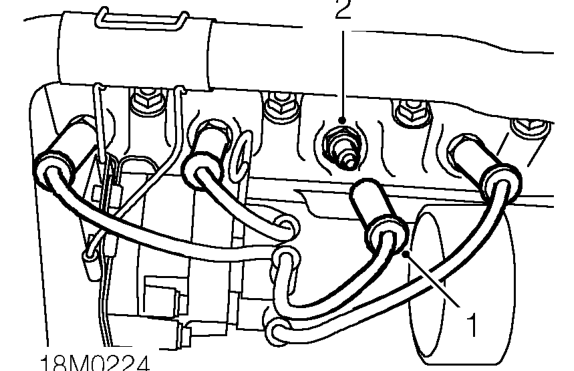

Spark plugs – Service repair no - 18.20.02
  1. Disconnect h.t. leads from spark plugs.
  2. Using a spark plug socket, remove 4 spark plugs.

Refit

  1. Fit terminals to new spark plugs.

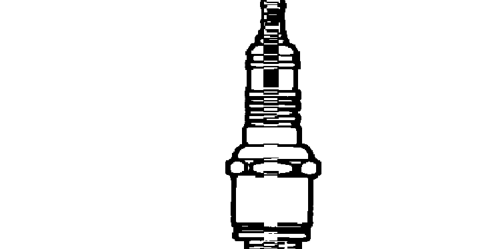

Spark plugs – Fit terminals to new spark plugs.
  1. Set gap of each spark plug to 0.85 mm.
  2. Fit spark plugs and tighten to 25 Nm.
  3. Connect h.t. leads to spark plugs.

CAUTION: Ensure that h.t. leads connect to spark plug terminals.

IGNITION COIL

Service repair no - 18.20.43

Remove

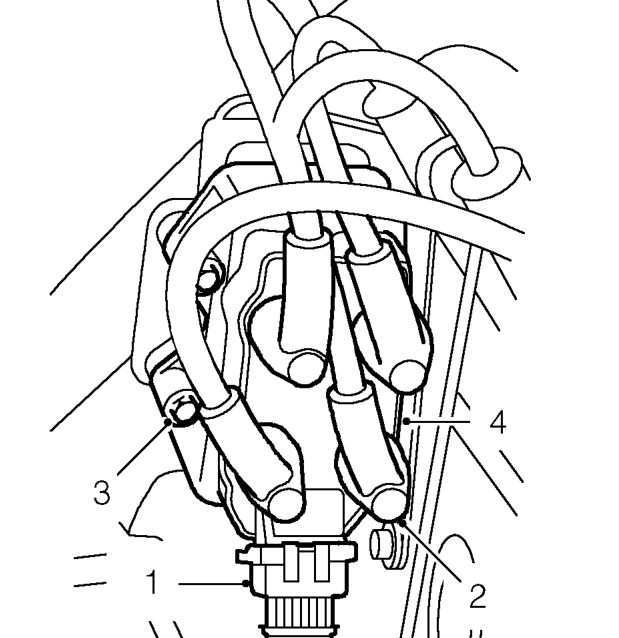

Ignition coil – Service repair no - 18.20.43
  1. Disconnect multiplug from ignition coil.
  2. Noting fitted positions, disconnect h.t. leads from ignition coil.
  3. Remove 4 bolts securing ignition coil to engine.
  4. Remove ignition coil.
