Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Front seat and squab frame (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Seats and seat belts
BodyFront seat and squab frame · page 2 of 2
Diagram

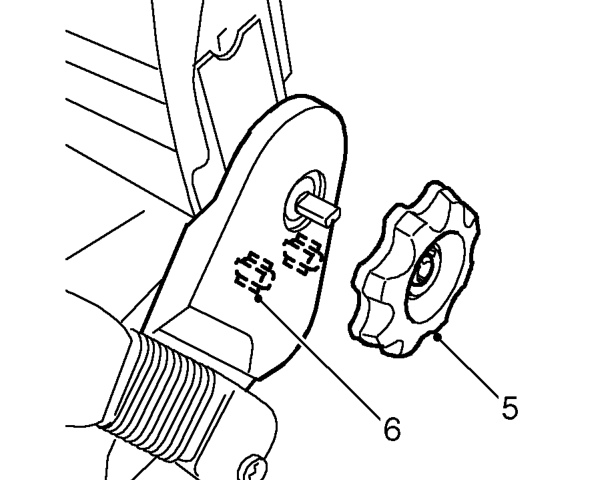

  1. Release adjustment wheel from seat valance.

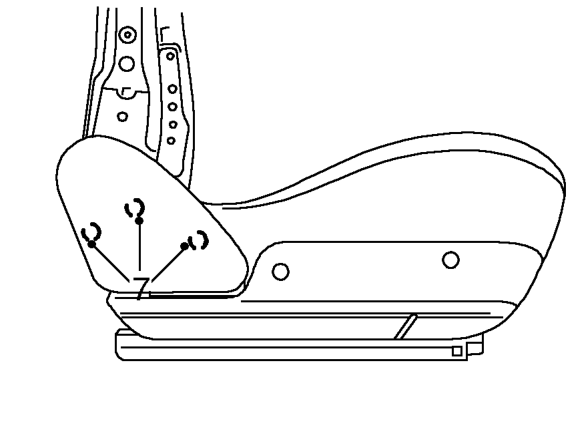

  2. Release inner valance from 2 clips and remove from seat.
Release inner valance from 2 clips and remove from seat.
  1. Release outer upper cushion valance from 3 clips and remove.
Release outer upper cushion valance from 3 clips and remove.

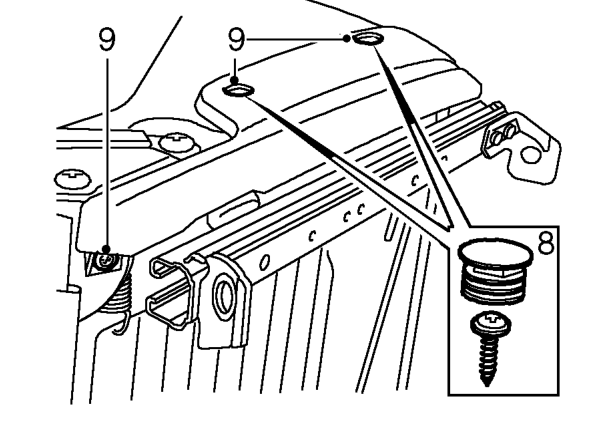

  1. Remove 2 escutcheons from side of lower valance.
  2. Remove 3 screws securing lower valance to seat.
  3. Remove outer valance from seat.
  4. Release SRS pre-tensioner harness from seat cushion.
Release SRS pre-tensioner harness from seat cushion.
  1. Remove bolt securing pre-tensioner to seat frame and remove pre-tensioner.
  2. Release 4 cushion cover retainers.
  3. Release 11 hog rings securing cushion cover to frame.
  4. Remove cushion cover.
  5. Remove cushion pad.
