Rover 200 Workshop Manual (1995-1999)10 · Engine management system - MEMS
10 · Engine

Fuel rail - ’K16’ (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Engine management system - MEMSFuel rail - ’K16’ · page 2 of 2

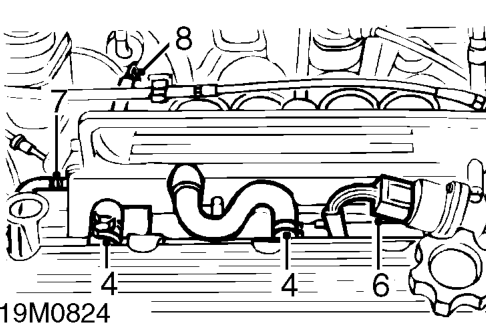

Diagram
  1. Release clips and disconnect breather hoses from camshaft cover.
  2. Remove 2 breather hoses from inlet manifold.
  3. Disconnect multiplug from IACV.
  4. Release clip and disconnect vacuum pipe from fuel pressure regulator.
  5. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Remove bolt securing injector harness multiplug bracket to inlet manifold.
  2. Disconnect injector harness multiplug and remove bracket.
  3. Position an absorbent cloth around fuel rail fuel feed connection.

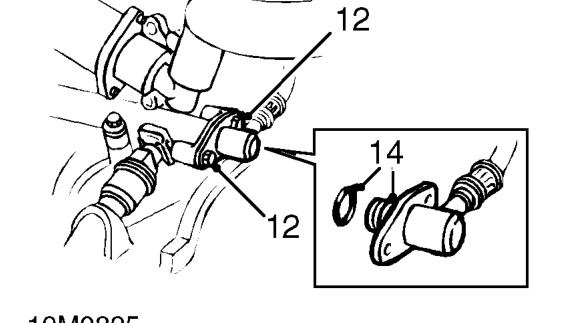

Position an absorbent cloth around fuel rail fuel feed connection.
  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail.
  3. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

  1. Remove engine oil dipstick.

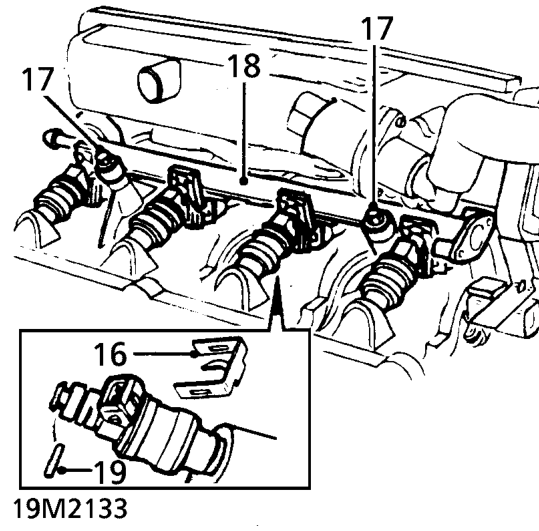

Remove engine oil dipstick.
  1. Release spring clips securing injectors to fuel rail.
  2. Remove 2 bolts securing fuel rail to inlet manifold.
  3. Release fuel rail from injectors and remove.
  4. Remove and discard ’O’ rings from injectors.
