Fuel rail - ’K16 with VVC’ (page 2 of 2)

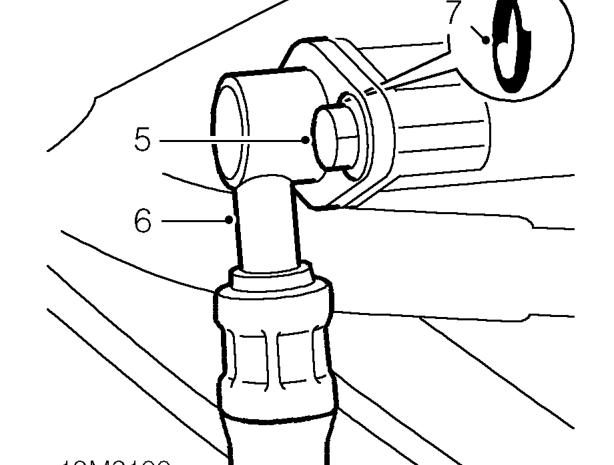

5. Remove 2 bolts securing fuel feed pipe to fuel rail.
6. Release fuel feed pipe from fuel rail.
7. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

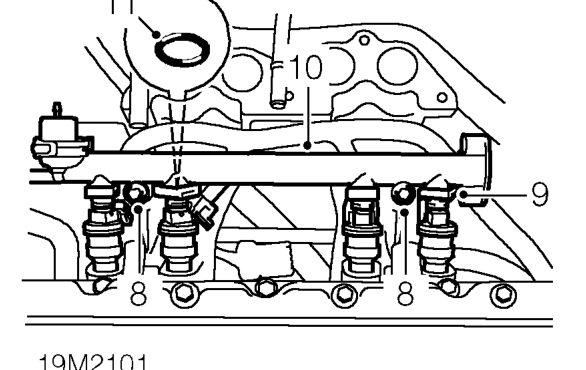

8. Remove 2 bolts securing fuel rail to inlet manifold.
9. Remove spring clips securing injectors to fuel rail.
10. Release fuel rail from injectors and remove.
11. Remove and discard ’O’ rings from injectors.

Refit

1. Lubricate new ’O’ rings with silicone grease and fit to injectors.
2. Position fuel rail and fit to injectors.
3. Fit spring clips securing fuel rail to injectors.
4. Fit bolts securing fuel rail to inlet manifold and tighten to 10 Nm.
5. Connect fuel return pipe to fuel rail secure with clip.
6. Remove plugs from fuel feed pipe and fuel rail.
7. Lubricate new ’O’ ring with silicone grease and fit to fuel feed pipe.
8. Connect fuel feed pipe to fuel rail and tighten bolts to 5 Nm.
9. Fit inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
10. Connect battery earth lead.
