Rover 400 Workshop Manual (1995-2000)20 · Automatic gearbox
20 · Transmission

Automatic gearbox & converter - 97.5 my on (page 2 of 7)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Automatic gearboxAutomatic gearbox & converter - 97.5 my on · page 2 of 7
Diagram

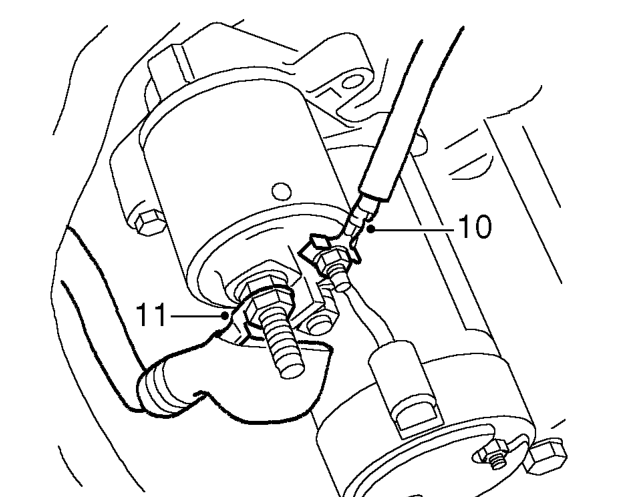

  1. Disconnect lucar connector from starter solenoid.
  2. Pull back terminal cover, remove nut and disconnect feed lead from starter solenoid.
Pull back terminal cover, remove nut and disconnect feed lead from starter solenoid.

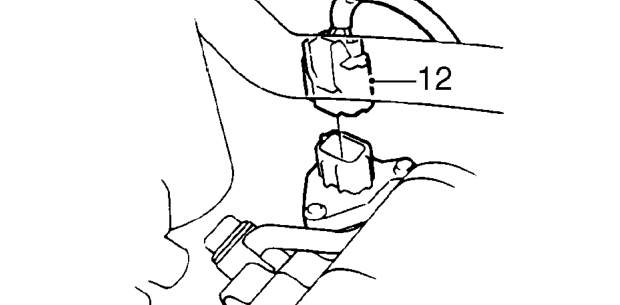

  1. Disconnect multiplug from speed sensor.
Disconnect multiplug from speed sensor.

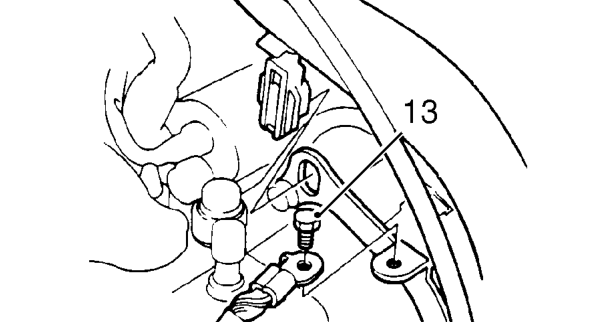

  1. Remove bolt securing earth lead to gearbox.
Remove bolt securing earth lead to gearbox.

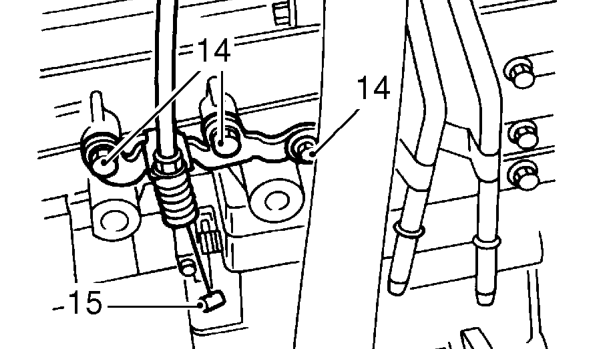

  1. Remove 3 bolts securing down shift cable bracket to gearbox and gearbox cooler pipes.
  2. Release inner cable from cam.
Release inner cable from cam.

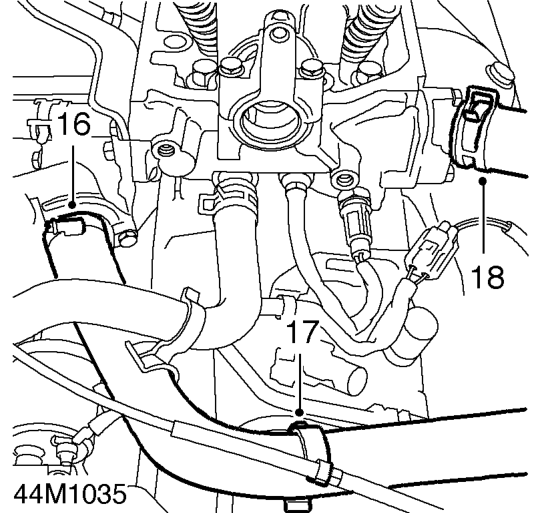

  1. Disconnect bottom hose from thermostat housing.
  2. Release bottom hose and down shift cable from clips, position bottom hose aside.
  3. Disconnect top hose from cylinder head adaptor.
