Automatic gearbox & converter - 97.5 my on (page 6 of 7)

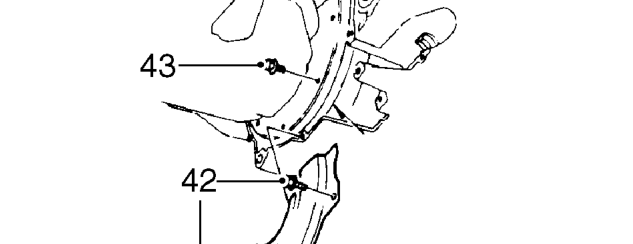

42. Remove 3 bolts securing drive plate closing panel and remove panel.
43. Remove 8 bolts securing drive plate to converter.

NOTE: Rotate crankshaft for access to bolts.

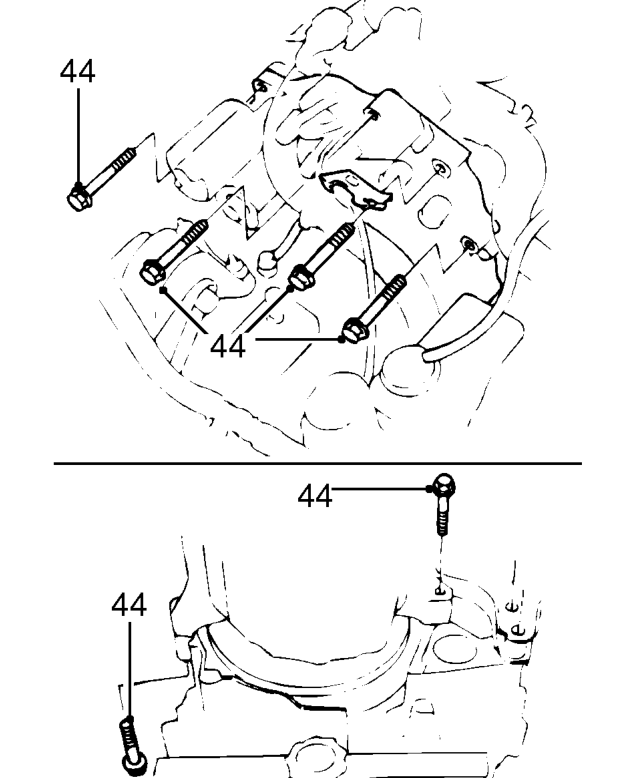

44. Remove 6 bolts securing gearbox to engine.
45. Release gearbox from engine to clear dowels then lower to floor.

CAUTION: Ensure torque converter is removed with gearbox.

46. Remove lifting chains. and with assistance withdraw gearbox from beneath vehicle.
47. Fit torque converter retaining plate and secure with 2 bolts.
