Rover 400 Workshop Manual (1995-2000)20 · Automatic gearbox
20 · Transmission

Automatic gearbox & converter - 97.5 my on (page 3 of 7)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Automatic gearboxAutomatic gearbox & converter - 97.5 my on · page 3 of 7
Diagram

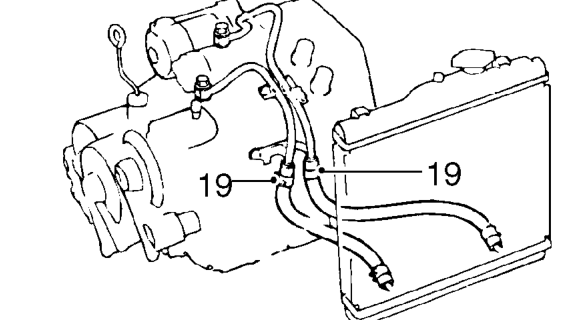

  1. Release clips and disconnect both fluid cooler hoses from gearbox pipes.

CAUTION: Plug connections.

Release clips and disconnect both fluid cooler hoses from gearbox pipes.

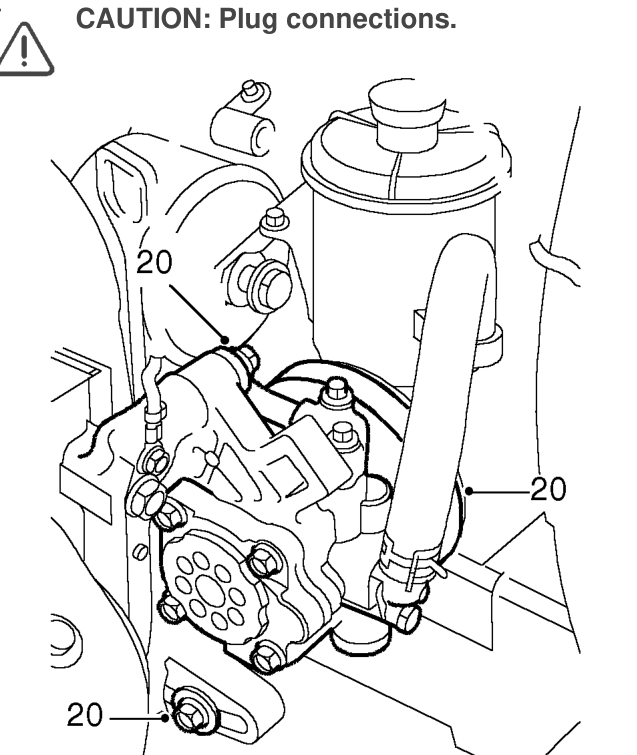

  1. Remove 2 bolts securing power steering pump to mounting bracket. Remove drive belt and position pump aside.
  2. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

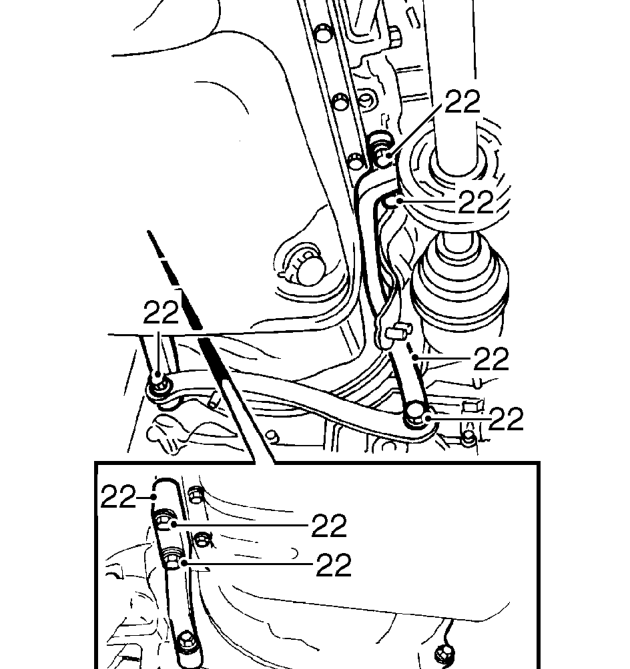

  1. Remove 6 bolts securing exhaust support and both anti-beaming bracket to engine. Remove brackets.
Remove 6 bolts securing exhaust support and both anti-beaming bracket to engine. Remove br

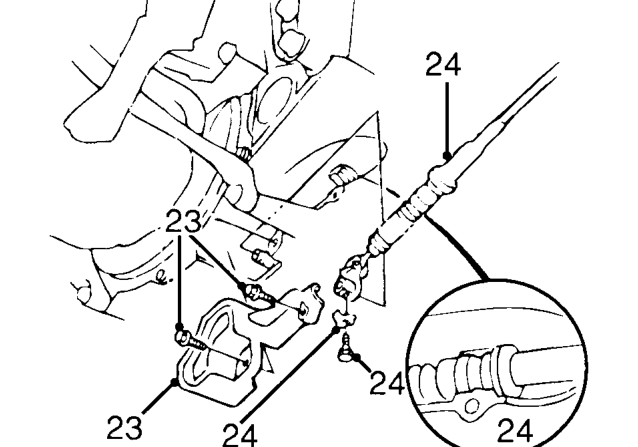

  1. Remove 2 bolts securing gear selector cable cover and remove cover.
  2. Release lock washer, remove bolt and release gear selector cable from gearbox.
  3. Remove RH drive shaft. See DRIVE SHAFTS, Repairs.
