Automatic gearboxAutomatic gearbox & converter - 97.5 my on · page 4 of 7
Diagram

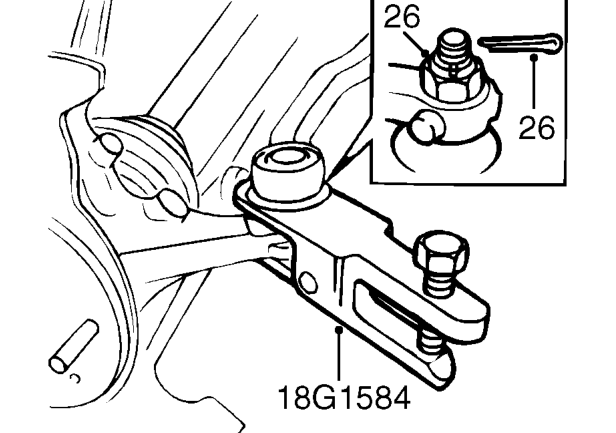

  1. Remove split pin and nut from LH steering arm.
  2. Break taper joint using tool 18G 1584 and release steering arm.
Break taper joint using tool 18G 1584 and release steering arm.

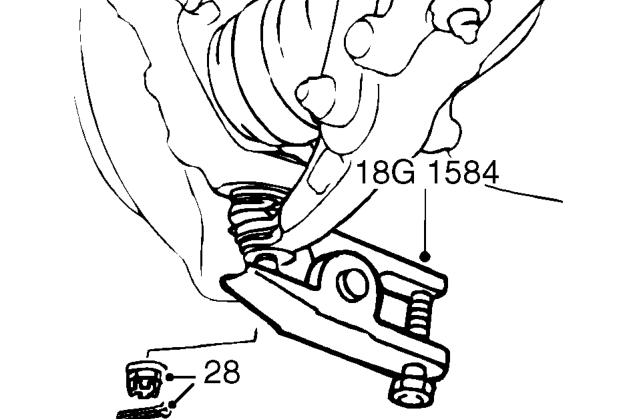

  1. Remove split pin and nut from LH lower ball joint.
  2. Break taper joint using tool 18G 1584 .
Break taper joint using tool 18G 1584 .

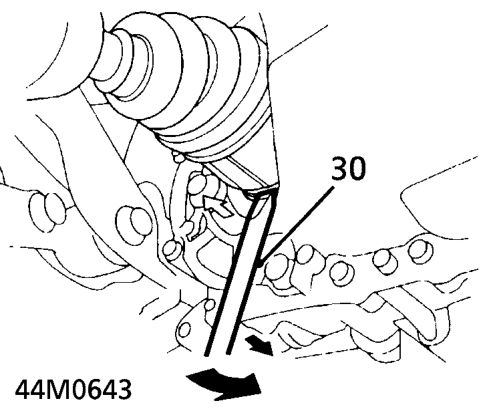

  1. Release hub from lower arm and drive shaft from gearbox.
Release hub from lower arm and drive shaft from gearbox.

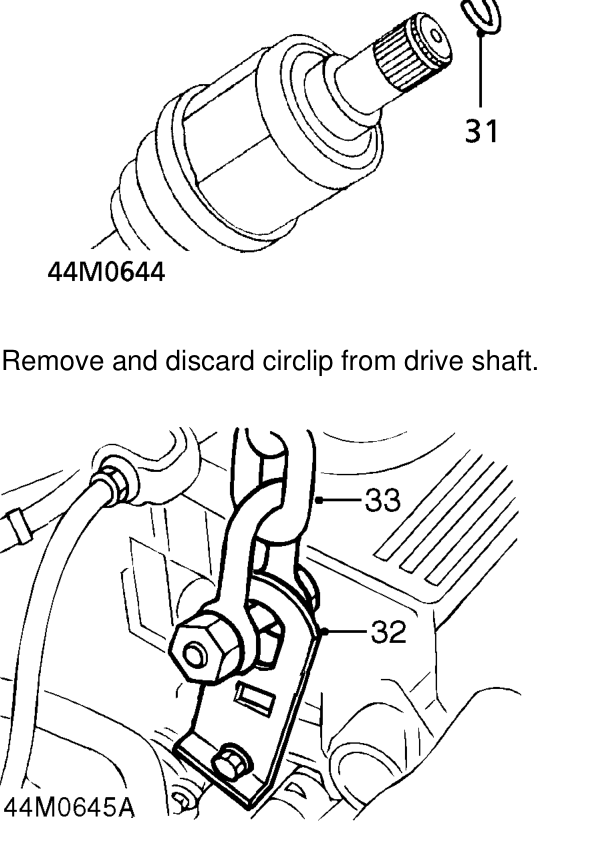

  1. Remove and discard circlip from drive shaft.
  2. Fit lifting bracket to distributor lower rear mounting flange bolt hole. Secure with an 8 mm bolt.
  3. Connect lifting chains and support weight of power unit.
