Rover 400 Workshop Manual (1995-2000)20 · Automatic gearbox
20 · Transmission

Automatic gearbox & converter - 97.5 my on (page 5 of 7)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Automatic gearboxAutomatic gearbox & converter - 97.5 my on · page 5 of 7

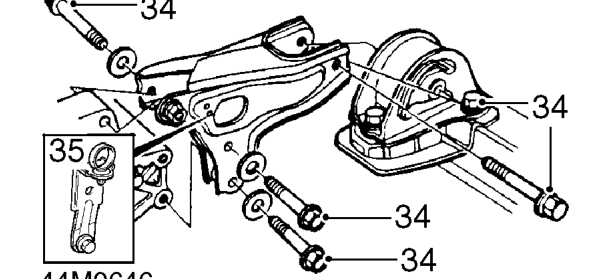

Diagram

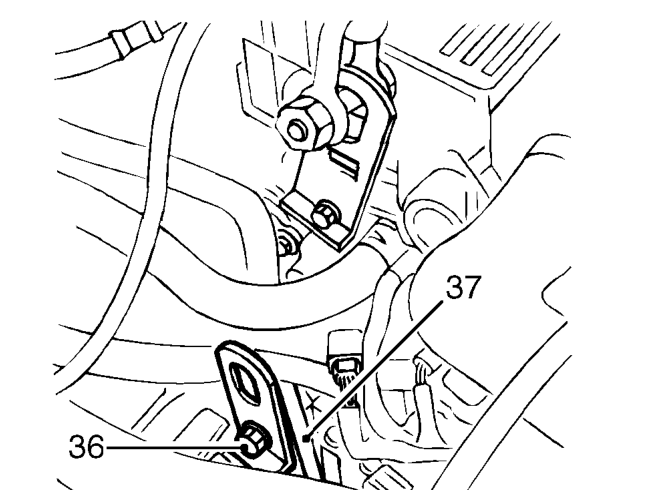

  1. Remove 4 bolts rear mounting bracket to engine and mounting rubber.
  2. Remove screw securing engine harness clip to rear mounting bracket.
Remove screw securing engine harness clip to rear mounting bracket.

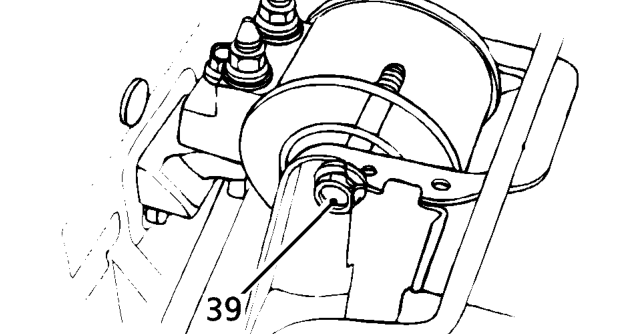

  1. Remove top fixing bolt from starter motor.
  2. Use a suitable spacer and fit a lifting bracket to starter motor top fixing. Fit bolt.
Use a suitable spacer and fit a lifting bracket to starter motor top fixing. Fit bolt.

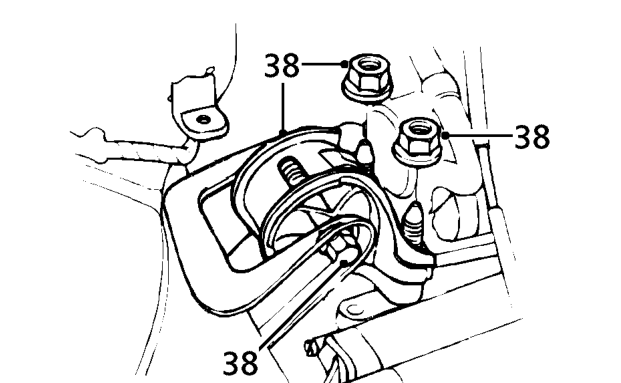

  1. Remove 2 nuts and loosen through bolt securing RH centre mounting to engine and body.
Remove 2 nuts and loosen through bolt securing RH centre mounting to engine and body.
  1. Loosen through bolt securing LH centre mounting to body.
Loosen through bolt securing LH centre mounting to body.
  1. Lower power unit for gearbox to clear body and remove through bolt and RH mounting.

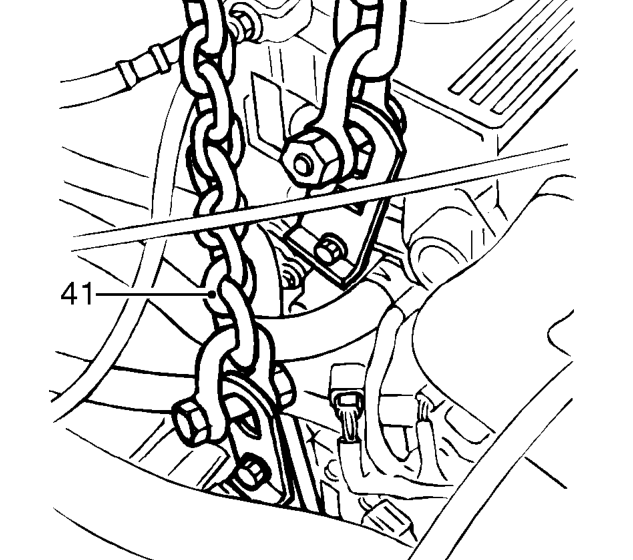

  2. Connect lifting chains and support weight of gearbox.
