Clutch master cylinder - ’t’ series (page 2 of 2)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
ClutchClutch master cylinder - ’t’ series · page 2 of 2
Diagram

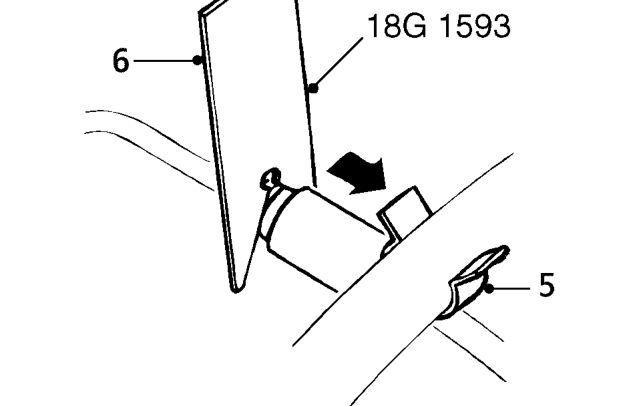

  1. Release clip securing clutch hydraulic pipe to harness.
  2. Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydraulic pipe.

NOTE: The quick release connector has a valve in each end preventing loss of clutch fluid and removing the need for bleeding the clutch system.

Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydra

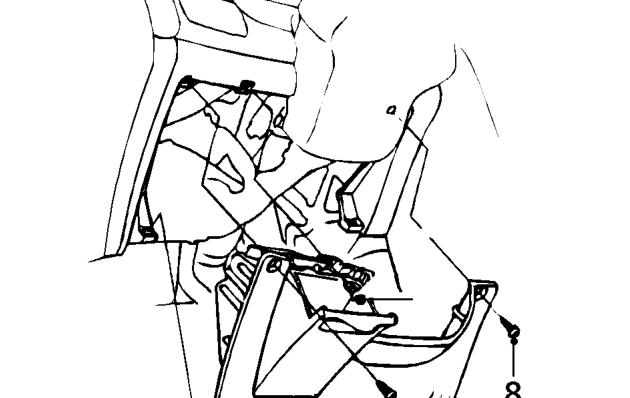

  1. Remove pocket from drivers side closing panel.
  2. Remove 3 screws securing drivers side closing panel to fascia.
  3. Remove closing panel from fascia.
Remove closing panel from fascia.

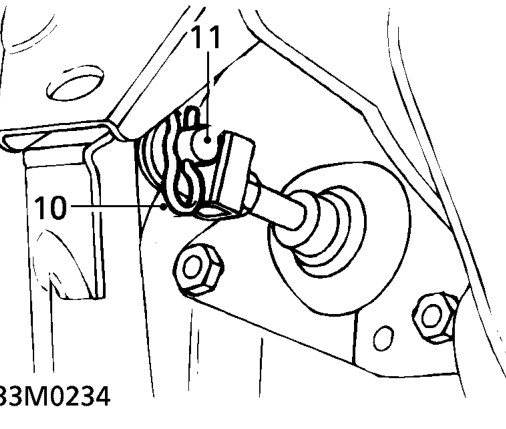

  1. Remove and discard spring clip from clutch pedal clevis pin.
  2. Remove clevis pin securing clutch master cylinder push rod to clutch pedal.
Remove clevis pin securing clutch master cylinder push rod to clutch pedal.

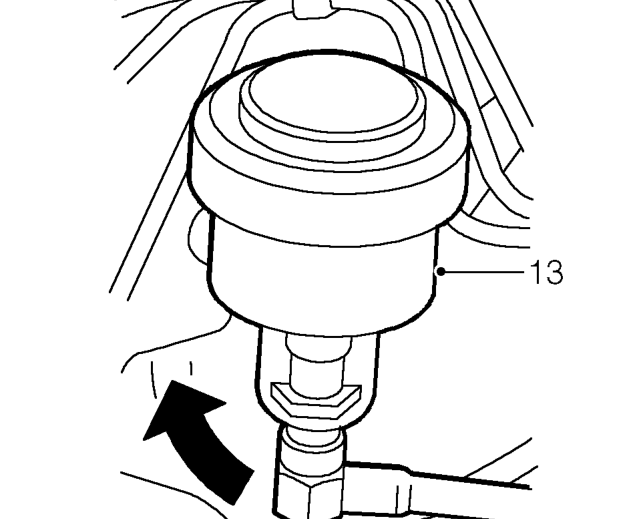

  1. Release master cylinder from bulkhead mounting plate by rotating 45° clockwise.
  2. Remove clutch master cylinder.
