Clutch release fork and bushes - ’k’ series

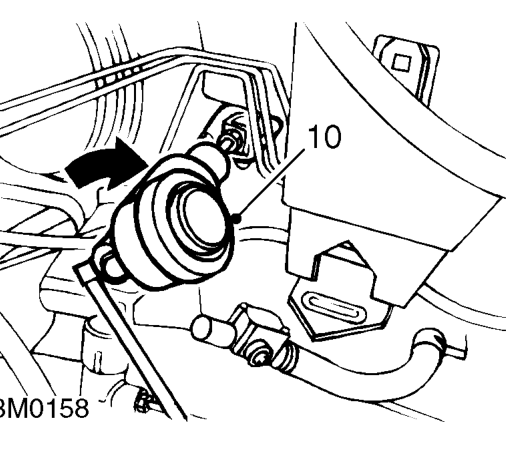

10. Release master cylinder from bulkhead mounting plate by rotating 45° clockwise.
11. Remove clutch master cylinder.

Refit

1. Fit clutch master cylinder to bulkhead ensuring push rod yoke is correctly aligned with clutch pedal.
2. Rotate master cylinder 45° clockwise, push flush against mounting plate, then rotate anti-clockwise to secure.
3. Align master cylinder push rod to clutch pedal and fit clevis pin.
4. Fit new spring clip securing clutch pedal clevis pin.
5. Fit drivers side closing panel to lower fascia and secure with screws.
6. Fit pocket to drivers side closing panel.
7. Clean 2 ends of clutch hydraulic pipe.
8. Connect 2 halves of clutch hydraulic pipe, ensure 2 halves of pipe are correctly engaged by trying to pull hydraulic pipes away from connector.
9. Secure clutch hydraulic pipe to clip on harness.
10. Fit engine control module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
11. Connect battery earth lead.

CLUTCH RELEASE FORK AND BUSHES - ’K’ SERIES

Service repair no - 33.25.18

Remove

1. Remove gearbox assembly. See MANUAL GEARBOX - ’R65’, Repairs.

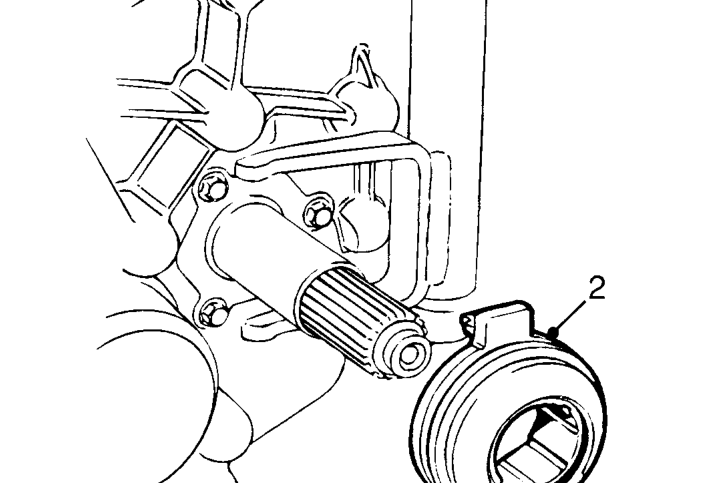

2. Remove release bearing from guide sleeve and release fork.
