ClutchClutch master cylinder - ’k’ series

CLUTCH MASTER CYLINDER - ’K’ SERIES

Service repair no - 33.20.01

Remove

  1. Disconnect battery earth lead.
  2. Remove engine control module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Clutch master cylinder - ’k’ series – Remove engine control module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

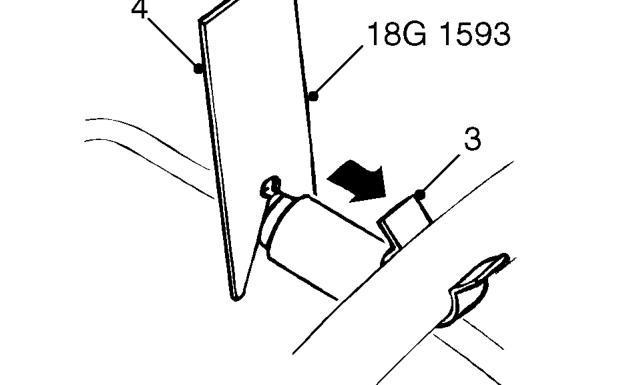

  1. Release clip securing clutch hydraulic pipe to harness.
  2. Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydraulic pipe.

NOTE: The quick release connector has a valve in each end preventing loss of clutch fluid and removing the need for bleeding the clutch system.

Clutch master cylinder - ’k’ series – Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydra

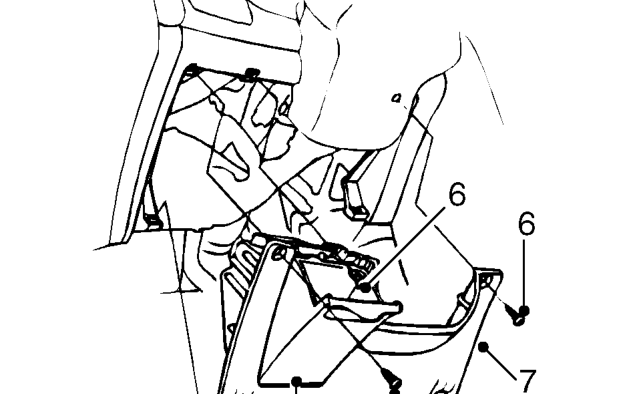

  1. Remove pocket from drivers side closing closing panel.
  2. Remove 3 screws securing drivers side closing panel to lower fascia.
  3. Remove drivers side closing panel from lower fascia.
Clutch master cylinder - ’k’ series – Remove drivers side closing panel from lower fascia.

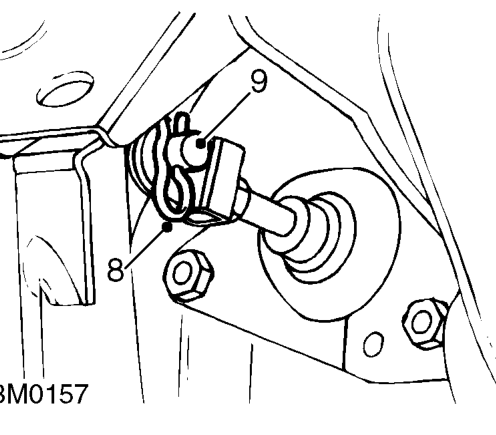

  1. Remove and discard spring clip from clutch pedal clevis pin.
  2. Remove clevis pin securing clutch master cylinder push rod to clutch pedal.
