Clutch slave cylinder - ’k’ series

CLUTCH SLAVE CYLINDER - ’K’ SERIES

Service repair no - 33.35.01

Remove

1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

2. Release clip securing clutch hydraulic pipe to harness.

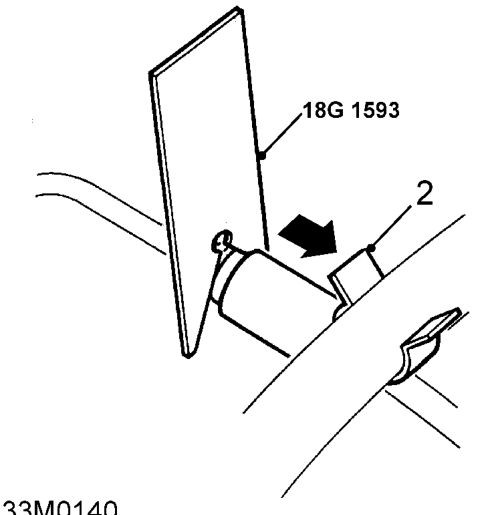

3. Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydraulic pipe.

NOTE: The quick release connector has a valve in each end preventing loss of clutch fluid and removing the need for bleeding the clutch system.

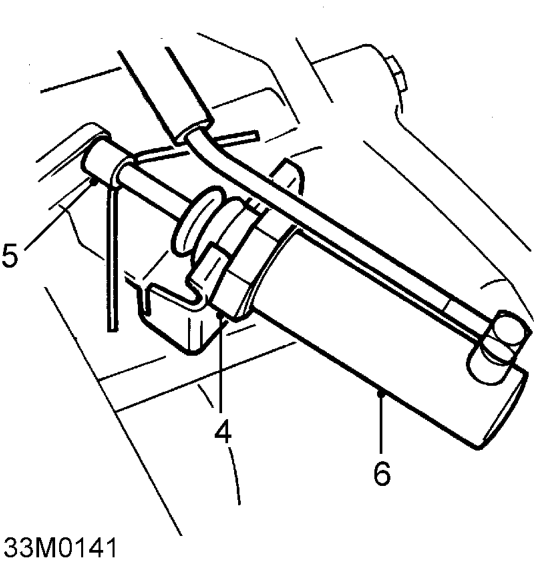

4. Remove locking collar securing clutch slave cylinder to gearbox mounting bracket.
5. Release clutch slave cylinder from gearbox mounting bracket and clutch release lever.
6. Remove clutch slave cylinder.

Refit

1. Clean clutch release lever and clutch slave cylinder.
2. Fit clutch slave cylinder to clutch release lever.
3. Locate clutch slave cylinder on gearbox mounting bracket and secure with locking collar.
4. Clean 2 ends of clutch hydraulic pipe.
5. Connect 2 halves of clutch hydraulic pipe, ensure 2 halves of pipe are correctly engaged by trying to pull hydraulic pipes away from connector.
6. Secure clutch hydraulic pipe to clip on harness.
7. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
