Drive plate - ’t’ series (page 2 of 2)

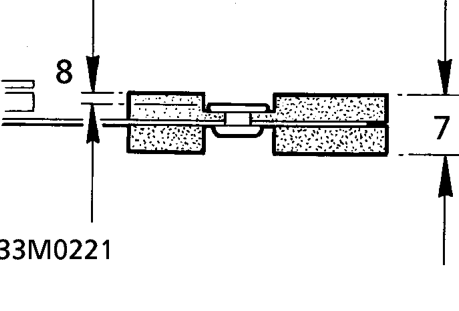

7. Measure clutch plate thickness, renew plate if less than service limit. Clutch plate thickness: NEW clutch plate = 7.1 - 7.5 mm Service limit = 5.8 mm
8. Measure rivet depth, renew plate if less than service limit. Rivet depth: NEW clutch plate = 1.0 mm Service limit = 0.2 mm

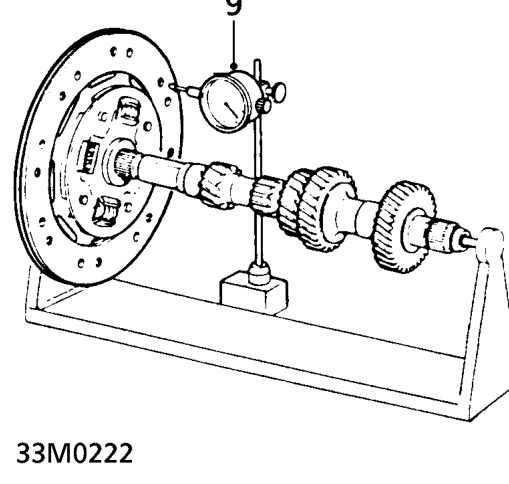

9. Measure clutch plate run-out using a dial gauge and a gearbox mainshaft; renew plate if outside service limit. Run-out: NEW clutch plate = 0.8 mm Service limit = 1.0 mm
10. Check clutch plate for signs of wear or damage. Check for signs of overheating on drive straps (deep straw or blue colour): Renew pressure plate if necessary.

CAUTION: Renew a pressure plate which has been accidentally dropped.

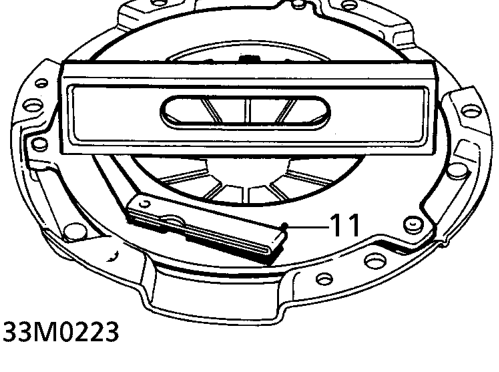

11. Using a straight edge and feeler gauges, check surface of pressure plate for warping at 4 separate points, renew plate if warping exceeds service limit. Pressure plate warping Service limit = 0.18 mm
