Rover 400 Workshop Manual (1995-2000)13 · Fuel delivery system
13 · Engine

Fuel filler flap release cable (page 3 of 3)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Fuel delivery systemFuel filler flap release cable · page 3 of 3
Diagram

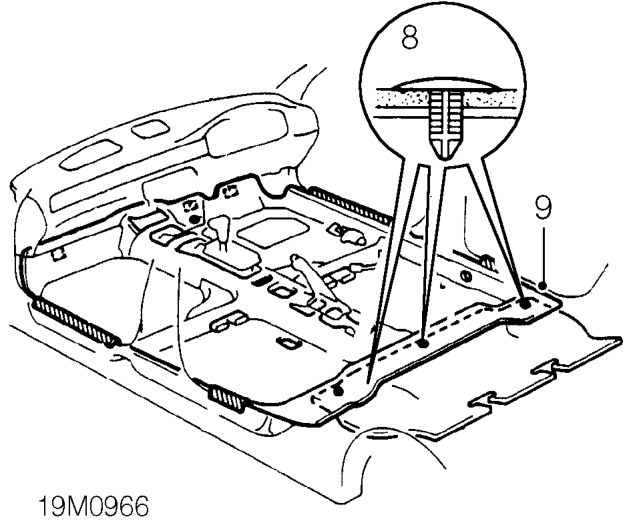

  1. Remove studs securing rear section of floor carpet.
  2. Release carpet from under ’D’ post lower finisher, driver’s side.
  3. Fold carpet forward for access to cable.
Fold carpet forward for access to cable.

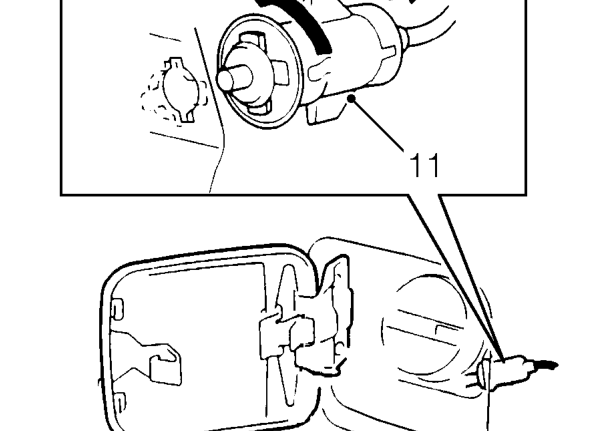

  1. Disconnect cable from filler flap.
Disconnect cable from filler flap.

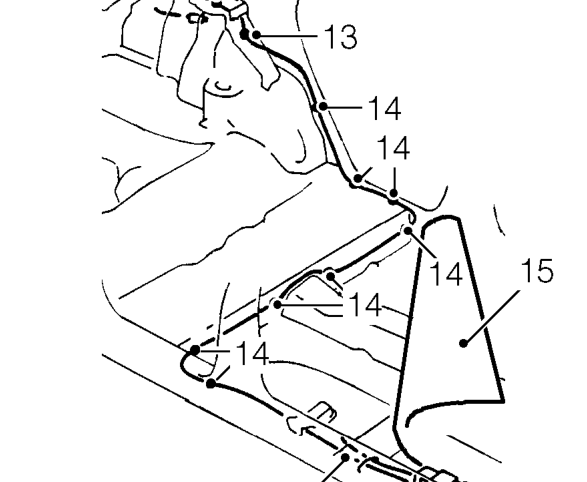

  1. Release cable from clips in luggage compartment.
  2. Pull cable through rear seat squab panel
  3. Release cable from ’D’ post and heelboard clips.
  4. Release carpet from front and rear door sill and from under ’B’ post finisher
  5. Move carpet from sill and release cable from sill clips.
Move carpet from sill and release cable from sill clips.

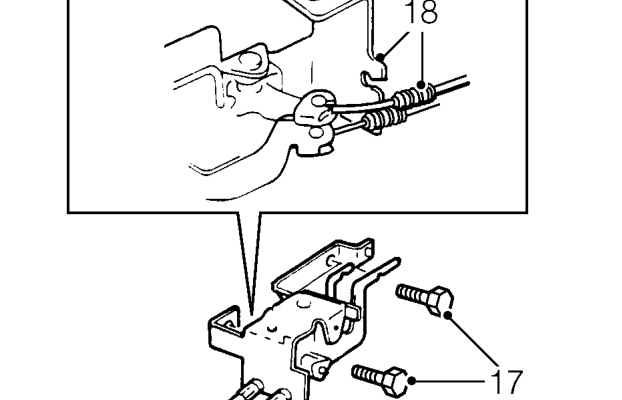

  1. Remove bolts securing cable control.
  2. Release outer cable from control abutment and inner cable from lever.
  3. Remove cable from vehicle.
