Automatic gearboxComponent location
COMPONENT LOCATION

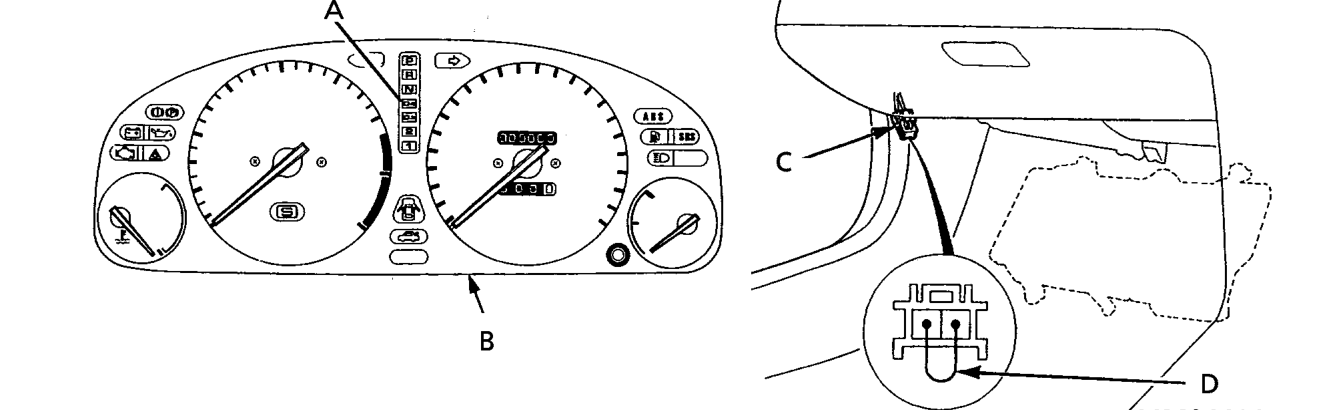

LHD shown; RHD is similar
A D4 Indicator light B Instrument pack C Service check connector D Jump wire
When the transmission control module (TCM) senses an abnormality in the system, the D4 indicator warning light on the instrument pack assembly will blink. When the service check connector located under the passengers side of the fascia is connected by a piece of wire, the D4 warning light will blink the Diagnostic Trouble Code (DTC) when the ignition is switched on.
When the D4 warning light has been reported on, connect the two terminals of the service check connector with a jump wire.
