Drain and refill (Cooling system - L Series)

DRAIN AND REFILL

WARNING: Since injury such as scolding could be caused by escaping steam or coolant, do not remove the pressure relief cap from the expansion tank while system is hot. Wait until system has cooled, use a cloth or gloves to protect hands from escaping steam.

Check level and top-up

CAUTION: The coolant level should only be checked when the system is cold.

1. Visually check that the coolant level is below flange on expansion tank. If level is appreciably low, suspect leakage or overheating.

• CAUTION: If coolant is not visible in
• expansion tank, the system must be
• refilled in accordance with the Refill
• procedure.

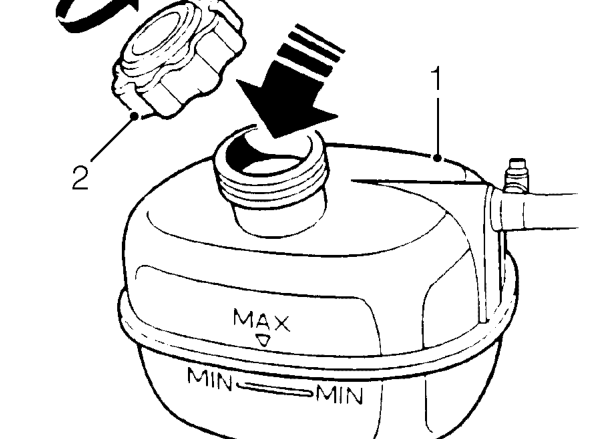

2. If required, remove coolant expansion tank cap and top-up with the correct anti-freeze mixture to just above the tank flange.

CAUTION: The coolant level must not exceed the maximum level indicator.

3. Check specific gravity of coolant. The overall anti-freeze concentration must not be less than 50% by volume or exceed 60% by volume.
4. Refit expansion tank cap.

Drain

Service repair no - 26.10.01

5. Visually check engine and cooling system for coolant leaks.
6. Examine hoses for signs of cracking, distortion and security of connections.
7. Move heater control to ’HOT’ position.
8. Remove under belly panel. See BODY, Exterior fittings.
9. Remove cap from expansion tank.
10. Position container to collect drained coolant.

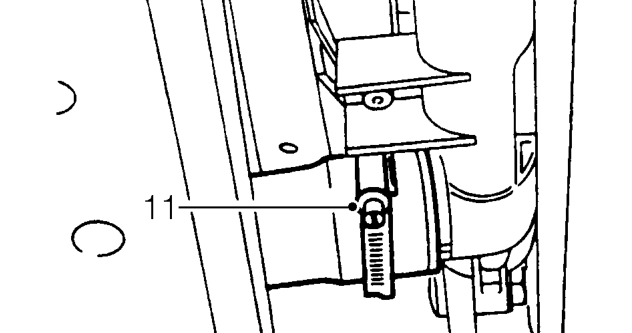

11. Loosen clip, disconnect bottom hose from radiator and allow coolant to drain.
12. Flush system with water under low pressure.

CAUTION: High pressure water could damage the radiator.
