COMPRESSOR - ’L’ SERIES

Service repair no - 82.10.20

Remove

  1. Recover refrigerant from air conditioning system. See REPAIR MANUAL - Air Conditioning, Adjustments.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect battery earth lead.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
Warning: support on safety stands. – Remove auxiliary drive belt. See ELECTRICAL, Repairs.

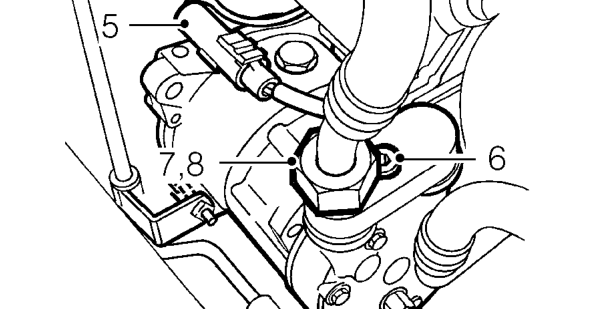

  1. Disconnect multiplug from compressor.
  2. Remove bolt securing air conditioning pipes to compressor.
  3. Release pipes from compressor.
  4. Remove and discard ’O’ rings from compressor.
  • CAUTION: Immediately cap all air
  • conditioning pipes to prevent ingress of
  • dirt and moisture into the system.
Warning: support on safety stands. – Remove and discard ’O’ rings from compressor.

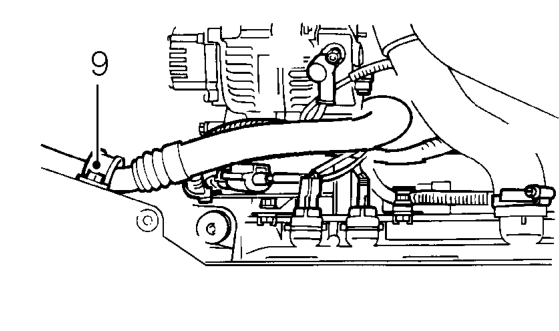

  1. Remove bolt securing air conditioning pipe to bonnet locking platform and move pipe aside.
Warning: support on safety stands. – Remove bolt securing air conditioning pipe to bonnet locking platform and move pipe aside.

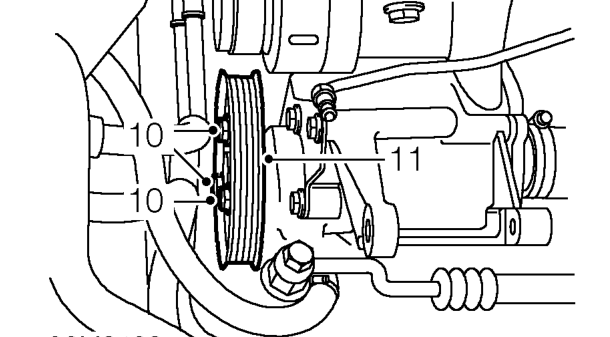

  1. Remove 3 Torx screws securing pulley to PAS pump.
  2. Remove PAS pump pulley.
