Receiver/drier - ’l’ series

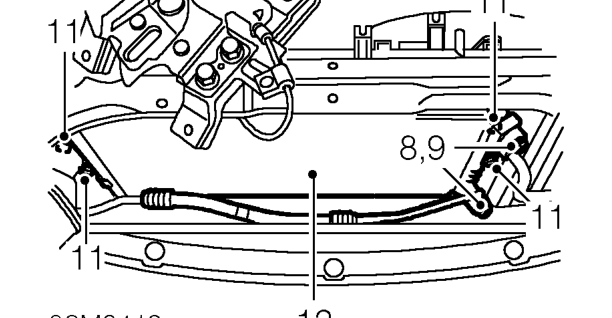

8. Remove 2 bolts securing air conditioning pipes to condenser.
9. Release pipes from condenser.

• CAUTION: Immediately cap all air
• conditioning pipes to prevent ingress of
• dirt and moisture into the system.

10. Remove and discard ’O’ rings.
11. Remove 4 bolts securing condenser to radiator.
12. Carefully manoeuvre condenser from vehicle.

Refit

1. Fit condenser to vehicle.
2. Fit and tighten 4 bolts securing condenser to radiator.
3. Remove caps from air conditioning pipes.
4. Fit new ’O’ rings to air conditioning pipes and lubricate with refrigerant oil.
5. Connect pipes to condenser and secure with bolts. Tighten bolts to 17 Nm.
6. Fit bonnet locking platform to body and secure with bolts.
7. Secure bonnet cable to locking platform with clip.
8. Secure bonnet switch harness to locking platform with clips.
9. Fit radiator mounting brackets to bonnet locking platform and tighten bolts to 9 Nm.
10. Replace receiver/drier. See this section.
11. Recharge air conditioning system. See REPAIR MANUAL - Air Conditioning, Adjustments

RECEIVER/DRIER - ’L’ SERIES

Service repair no - 82.17.03

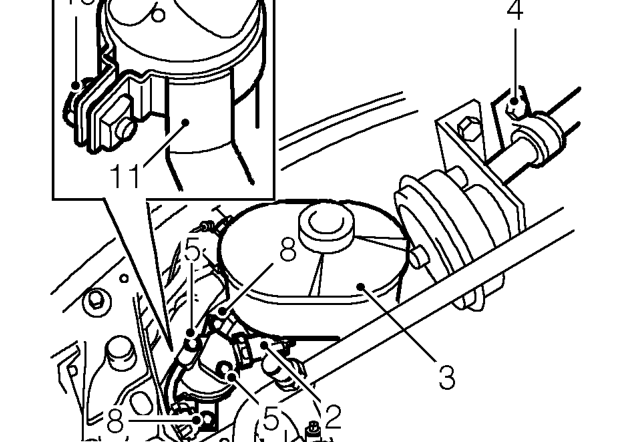

Remove

1. Recover refrigerant from air conditioning system. See REPAIR MANUAL - Air Conditioning, Adjustments

2. Disconnect multiplug from trinary switch.
3. Release PAS reservoir from bracket and move aside.
4. Remove bolt securing air conditioning pipe to inner wing.
5. Remove 2 bolts securing air conditioning pipes to receiver/drier.
6. Release pipes from receiver/drier.

• CAUTION: Immediately cap all air
• conditioning pipes to prevent ingress of
• dirt and moisture into the system.

7. Remove and discard ’O’ rings from pipes.
8. Remove 2 bolts securing receiver/drier to body.
9. Remove receiver drier.
10. Loosen clamping bolt securing mounting bracket to receiver drier.
11. Remove mounting bracket and discard receiver/drier.
