Repairs › Engine overheat protection switch - ’l’ series
Air conditioningEngine overheat protection switch - ’l’ series · page 1 of 2

Refit

  1. Fit mounting bracket to NEW receiver/drier and tighten clamping bolt.
  2. Fit receiver/drier to vehicle.
  3. Fit and tighten bolts securing receiver/drier to body.
  4. Remove caps from air conditioning pipes.
  5. Fit new ’O’ rings to pipes and lubricate with refrigerant oil.
  6. Connect pipes to receiver drier and tighten bolts to 5 Nm.
  7. Fit and tighten bolt securing air conditioning pipe to inner wing.
  8. Secure PAS reservoir to mounting bracket.
  9. Connect multiplug to trinary switch.
  10. Recharge air conditioning system. See Adjustments.

ENGINE OVERHEAT PROTECTION SWITCH - ’L’ SERIES

Service repair no - 82.20.30

Remove

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Exterior fittings.

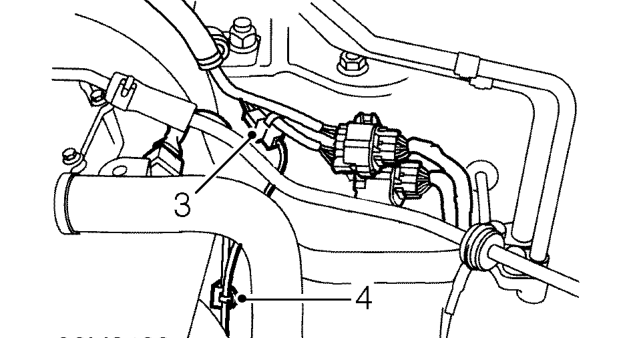

Engine overheat protection switch - ’l’ series – Remove underbelly panel. See BODY, Exterior fittings.
  1. Disconnect engine overheat protection switch multiplug from engine harness.
  2. Release switch harness clip from bracket on timing cover.

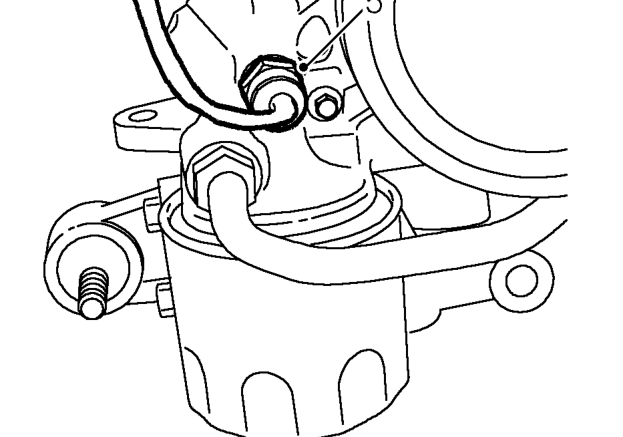

Engine overheat protection switch - ’l’ series – Release switch harness clip from bracket on timing cover.
  1. Remove engine overheat protection switch.
