FRONT CENTRE UNDERBELLY PANEL

Service repair no - 76.10.50

Remove

  1. Diesel models: Remove front RH and LH underbelly panels. See DIESEL REPAIR MANUAL SUPPLEMENT - Body.

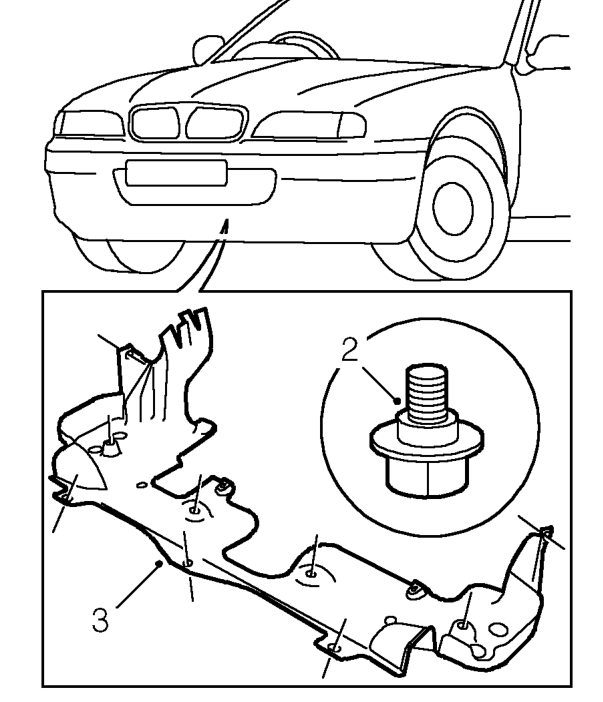

Front centre underbelly panel – Diesel models: Remove front RH and LH underbelly panels. See DIESEL REPAIR MANUAL SUPPLEME
  1. Remove 9 bolts securing front centre underbelly panel.
  2. Release and remove panel from vehicle.

Refit

  1. Position underbelly panel.
  2. Fit and tighten underbelly panel retaining bolts.
  3. Diesel models: Fit front RH and LH underbelly panels, see DIESEL REPAIR MANUAL SUPPLEMENT - Body.

ENGINE ACOUSTIC COVER - ’L’ SERIES

Service repair no - 76.11.06

Remove

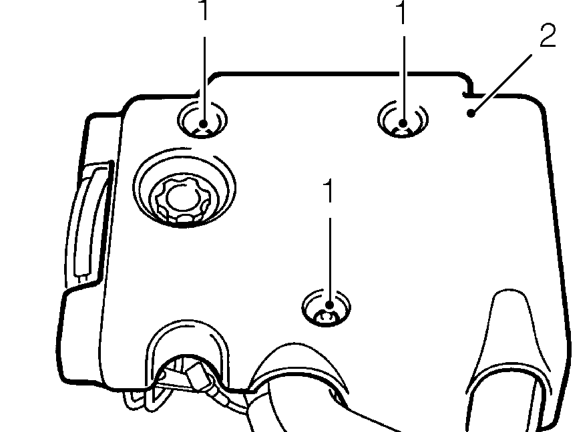

Engine acoustic cover - ’l’ series – Service repair no - 76.11.06
  1. Remove 3 bolts securing acoustic cover to engine.
  2. Remove engine acoustic cover.

Refit

  1. Fit engine acoustic cover.
  2. Fit and tighten securing bolts.
