ELECTRICALLY OPERATED DRIVERS SEAT

Service repair no - 78.10.43.99

Remove

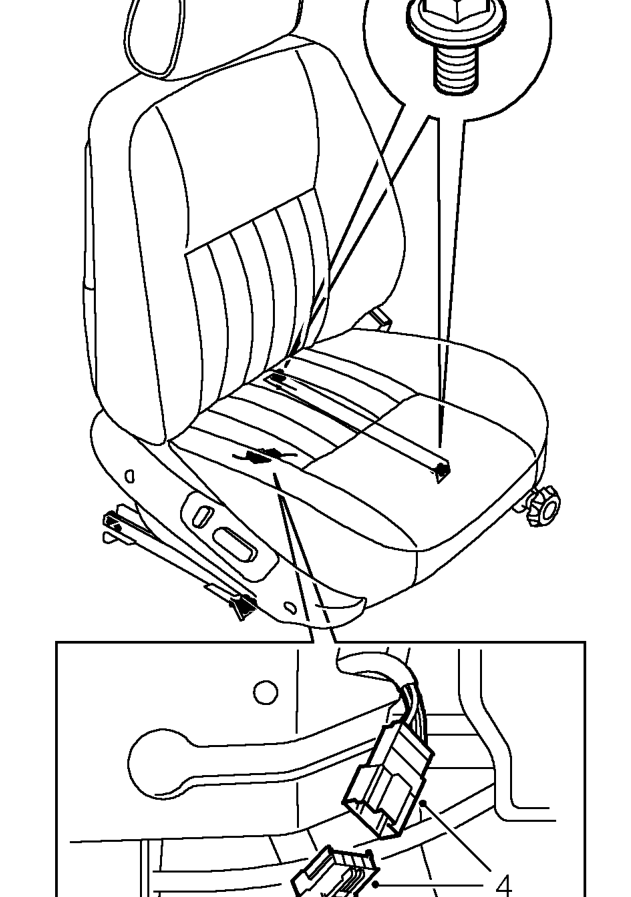

Electrically operated drivers seat – Service repair no - 78.10.43.99
  1. Remove 2 bolts securing front of seat to floor.
  2. Move seat forward.
  3. Remove 2 bolts securing rear of seat to floor.
  4. Disconnect multiplug.
  5. Remove drivers seat.

Refit

  1. Fit drivers seat.
  2. Fit 2 bolt securing rear of seat to floor, and tighten to 35 Nm.
  3. Connect multiplug.
  4. Move seat fully to the rear.
  5. Fit 2 bolts securing front of seat to floor, and tighten to 35 Nm.

LUMBAR SUPPORT MECHANISM

Service repair no - 78.60.07

Remove

  1. Remove front seat. See this section.

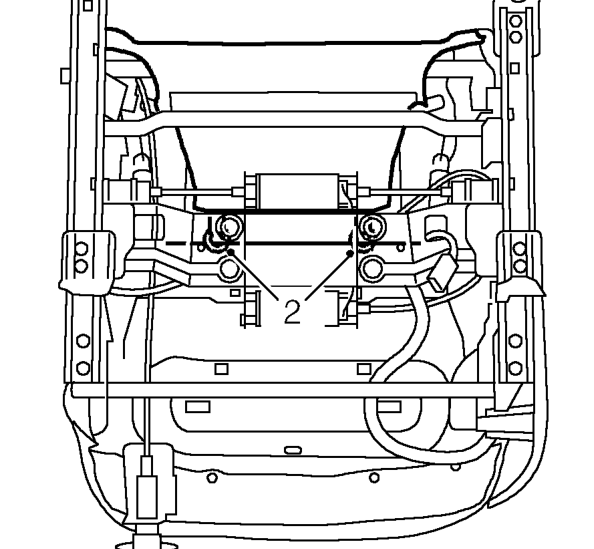

Lumbar support mechanism – Remove front seat. See this section.
  1. Remove 2 hog rings, securing squab rear cover flap to seat cushion Pullmaflex.

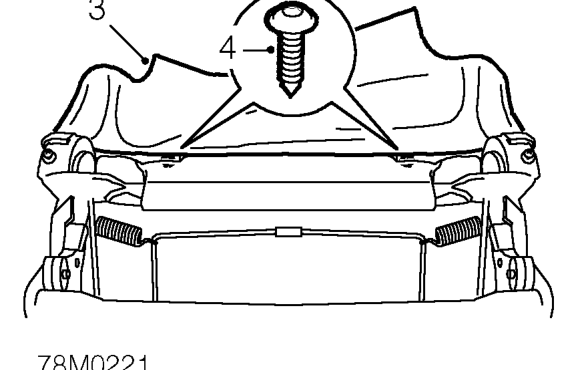

Lumbar support mechanism – Remove 2 hog rings, securing squab rear cover flap to seat cushion Pullmaflex.
  1. Pull bottom cover flap outward to gain access to 2 Torx screws.
  2. Remove 2 T20 Torx screws.
  3. Pull seat squab rear cover down to release hooks, then remove cover.
  4. Rotate control knob to relax lumbar mechanism.
