Front seat slide motor

Refit

1. Thread cable under seat and up through squab to lumbar position.
2. Fit cable to bracket, fit and tighten 2 Torx screws.
3. Fit adjustment knob.
4. Secure cable with ties.
5. Fit mechanism to cable.
6. Connect inner cable to mechanism and secure with clip.
7. Secure mechanism at 4 points in seat frame.
8. Check operation of mechanism.
9. Fit rear cover to squab and push upwards to secure to frame.
10. Fit 2 Torx screws.
11. Pull bottom flap of squab rear cover under seat cushion. Tension elastic and secure to Pullmaflex with hog rings
12. Fit front seat. See this section.

FRONT SEAT SLIDE MOTOR

Service repair no - 78.70.25

Remove

1. Remove front seat. See this section.

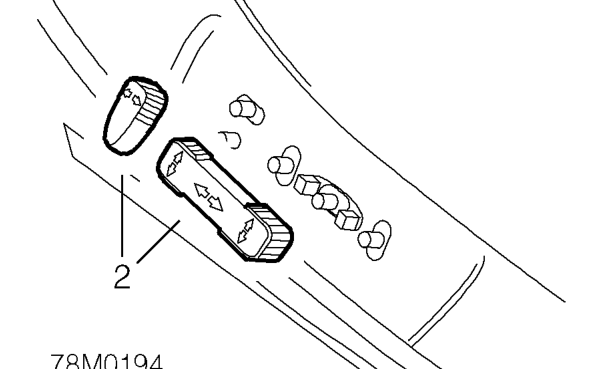

2. Carefully prise off switch knobs.
