Workshop Manuals Factory service & repair Rover
Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Rear seat belt - centre

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts › Rear seat belt - centre
BodyRear seat belt - centre · page 1 of 2

REAR SEAT BELT - CENTRE

Service repair no - 76.73.37

Remove

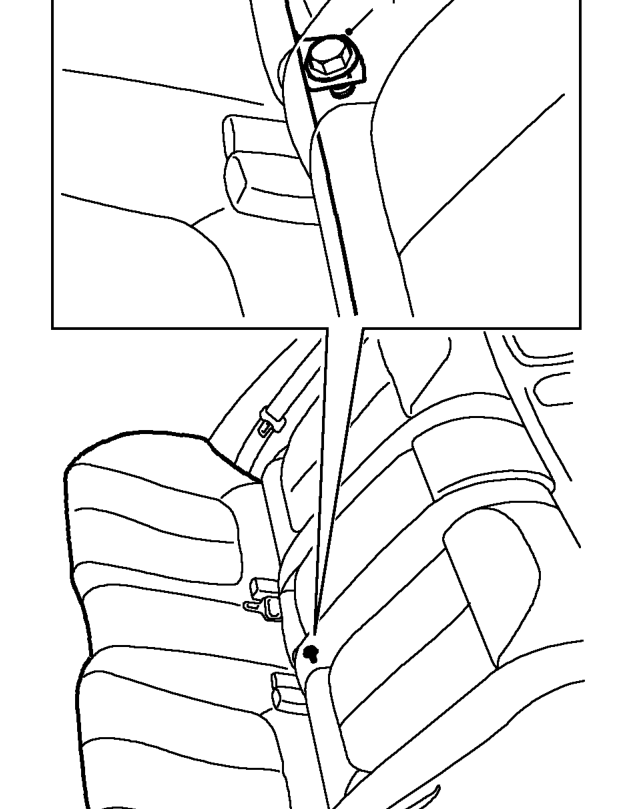

Rear seat belt - centre – Service repair no - 76.73.37
  1. Remove bolt securing rear seat cushion.
Rear seat belt - centre – Remove bolt securing rear seat cushion.

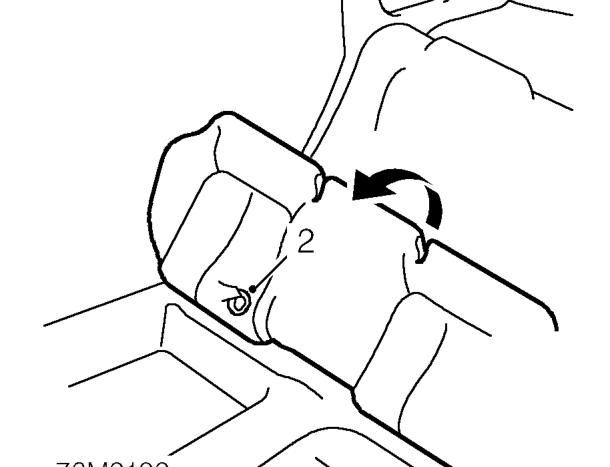

  1. Raise rear edge of cushion, release forward fixings and remove cushion.
Rear seat belt - centre – Raise rear edge of cushion, release forward fixings and remove cushion.

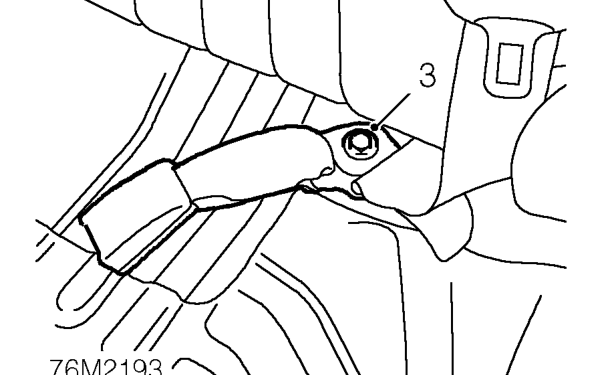

  1. Remove bolt securing seat belt buckle to floor.
  2. Remove rear shelf. See REPAIR MANUAL - Body.
