Front seat reclining motor

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts › Front seat reclining motor
BodyFront seat reclining motor · page 1 of 3

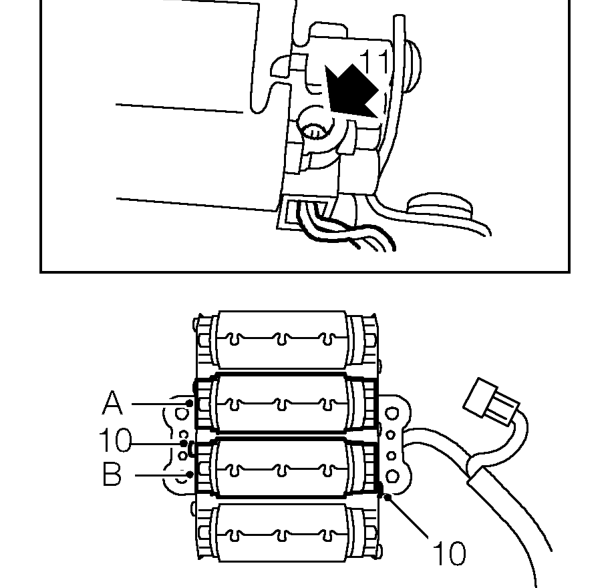

Diagram
  1. Remove 2 T20 Torx screws securing faulty motor to assembly.
  2. De-solder motor connections.
  3. Remove tilt motor. Motor ’A’ raises and lowers rear of the seat. Motor ’B’ raises and lowers front of seat.

Refit

  1. Positon motor and solder connections.
  2. Align motor to mounting bracket. Fit and tighten Torx screws.
  3. Connect drive cables to motor.
  4. Fit motor assembly to seat and tighten bolts.
  5. Secure harness to seat.
  6. Connect multiplugs to control unit.
  7. Fit outer seat valance. Tighten Torx screws.
  8. Fit knobs to control switch.
  9. Fit front seat. See this section.

FRONT SEAT RECLINING MOTOR

Service repair no - 78.70.34

Remove

  1. Remove front seat. See this section.

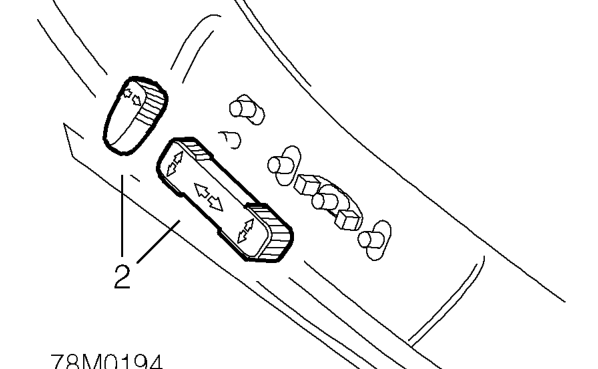

Front seat reclining motor – Remove front seat. See this section.
  1. Carefully prise off switch Knobs.
