Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Front seat reclining motor (page 2 of 3)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts
BodyFront seat reclining motor · page 2 of 3
Diagram

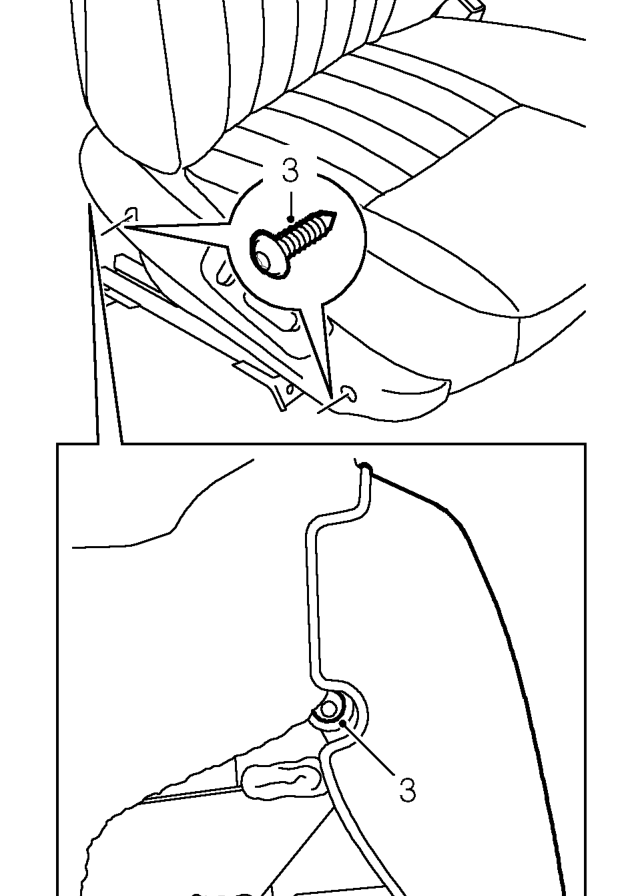

  1. Remove 3 T20 Torx screws securing seat outer valance.
Remove 3 T20 Torx screws securing seat outer valance.

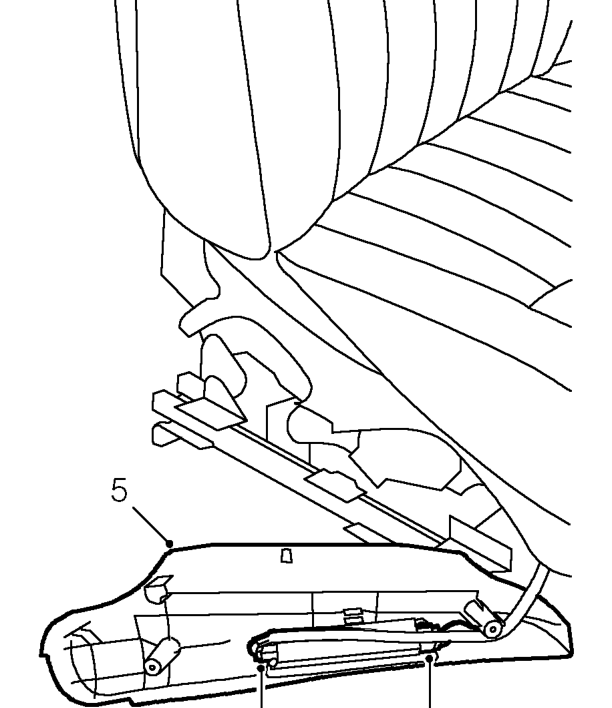

  1. Disconnect 2 multiplugs from control switch unit.
  2. Remove seat outer valance.
Remove seat outer valance.

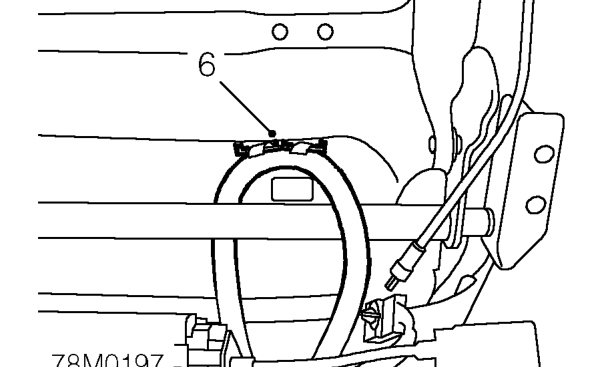

  1. Release seat harness from seat.
