Rover 600 Repair Manual Supplement (1993-1999)05 · Fuel delivery system - L Series
05 · Engine

Fuel tank draining

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Fuel tank draining
Fuel delivery system - L SeriesFuel tank draining

FUEL TANK DRAINING

Service repair no - 19.55.02

WARNING: Before removing the fuel tank from the vehicle it must be drained. Use gloves or suitable protective barrier cream to protect the hands against contact with diesel fuel.

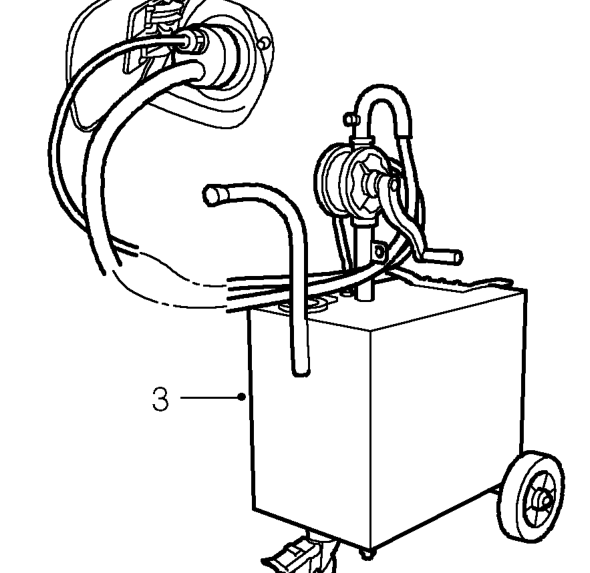

Fuel tank draining – WARNING: Before removing the fuel tank from the vehicle it must be drained. Use gloves or
  1. Remove fuel tank filler cap and allow fuel tank to vent in an open space before commencing work.
  2. Disconnect battery earth lead.
  3. Using a bowser, drain fuel from the tank into a sealed container. Follow the manufacturers instructions for the connection and safe use of the bowser.
  4. Continue draining until air bubbles appear and fuel ceases to flow.
  5. Disconnect bowser from fuel tank.

AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.
Air cleaner – Remove battery. See ELECTRICAL, Repairs.
  1. Remove 4 bolts securing battery tray to body.
  2. Remove battery tray.
