Models with air conditioning

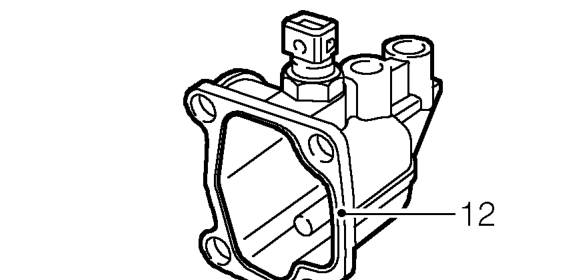

12. Remove coolant outlet elbow, remove and discard seal.

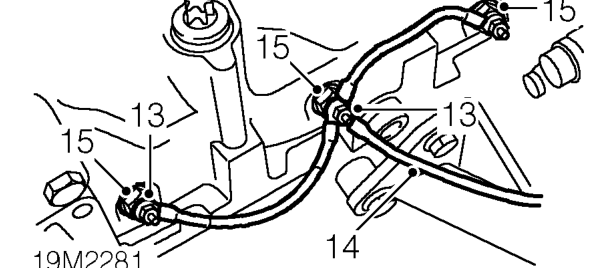

13. Remove 3 nuts securing feed leads to glow plugs.
14. Release feed lead from terminal and remove link lead.
15. Remove 3 glow plugs.

Refit

1. Thoroughly clean glow plugs and glow plug seating area in cylinder head.
2. Apply a suitable anti-seize compound to threads of glow plugs.
3. Fit glow plugs and tighten to 20 Nm.
4. Fit terminal and feed leads to glow plugs.

NOTE: Harness feed lead must be connected to glow plug No. 2.

5. Tighten terminal nuts to 2.5 Nm.
6. Clean mating faces of coolant outlet elbow and cylinder head.
7. Fit new seal to coolant outlet elbow.
8. Fit coolant outlet elbow to cylinder head, fit bolts and tighten to 25 Nm.
9. Connect radiator top hose to coolant outlet elbow and tighten clip.
10. Align dipstick tube bracket to coolant outlet elbow and secure with bolt.
11. Connect temperature gauge sensor lead.
12. Connect multiplug to coolant temperature sensor.

Models with air conditioning

13. Fit alternator. See ELECTRICAL, Repairs.
14. Fit plenum chamber. See FUEL DELIVERY SYSTEM, Repairs.
15. Fit hose intercooler to plenum and tighten clips.
16. Fit engine acoustic cover. See BODY, Exterior fittings.
17. Refill cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
18. Connect battery earth lead.
