Rover 600 Repair Manual Supplement (1993-1999)05 · Fuel delivery system - L Series
05 · Engine

CAUTION: Plug the connections.

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › CAUTION: Plug the connections.
Fuel delivery system - L SeriesCAUTION: Plug the connections.

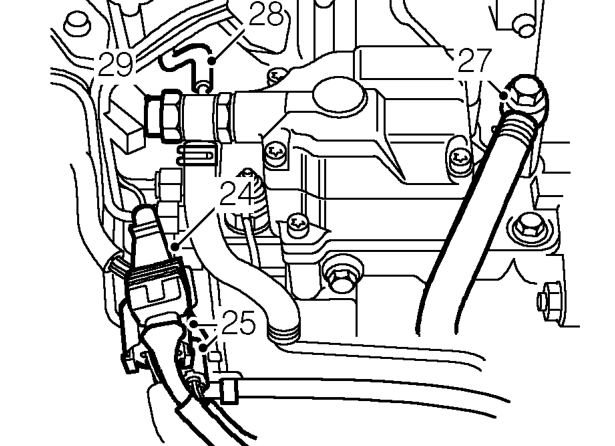

Diagram
  1. Release injector needle lift sensor multiplug from FIP bracket.
  2. Disconnect engine harness from 2 FIP multiplugs and multiplugs from bracket.
  3. Position absorbent cloth to collect fuel spillage.
  4. Remove bolt securing fuel feed pipe banjo to FIP and discard sealing washers.
  5. Disconnect fuel return hose to FIP from No. 3 injector.
  6. Remove cap nut, release fuel return pipe banjo from FIP and discard sealing washers.

CAUTION: Plug the connections.

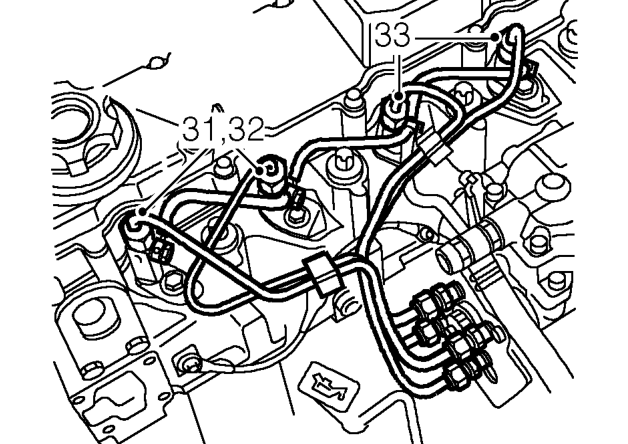

Caution: plug the connections. – Remove cap nut, release fuel return pipe banjo from FIP and discard sealing washers.
  1. Position absorbent cloth around fuel pipe connections to collect fuel spillage.
  2. Loosen No. 1 and No. 2 injector pipe unions at injector and FIP.
  • CAUTION: To prevent damage to fuel
  • injection pipes or components, use two
  • spanners when loosening unions.
  1. Disconnect unions and remove No. 1 and No. 2 injector pipes.
  2. Repeat above procedure to remove injector pipes No. 3 and No. 4.

CAUTION: Plug the connections.

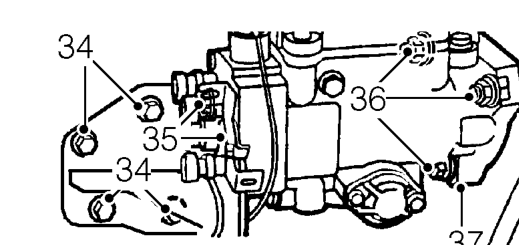

Caution: plug the connections. – Repeat above procedure to remove injector pipes No. 3 and No. 4.
  1. Remove 4 bolts securing FIP support bracket to engine.
  2. Remove 2 nuts and bolts securing bracket to FIP and remove bracket.
  3. Remove 3 nuts securing FIP to gearbox mounting plate.
  4. Remove FIP.
