Fuel delivery system - L SeriesFuel tank

FUEL TANK

Service repair no - 19.55.01

Remove

  1. Disconnect battery earth lead.
  2. Drain fuel tank. See FUEL DELIVERY SYSTEM, Repairs.
  3. Open boot lid and remove carpet.
  4. Lower RH rear seat squab.

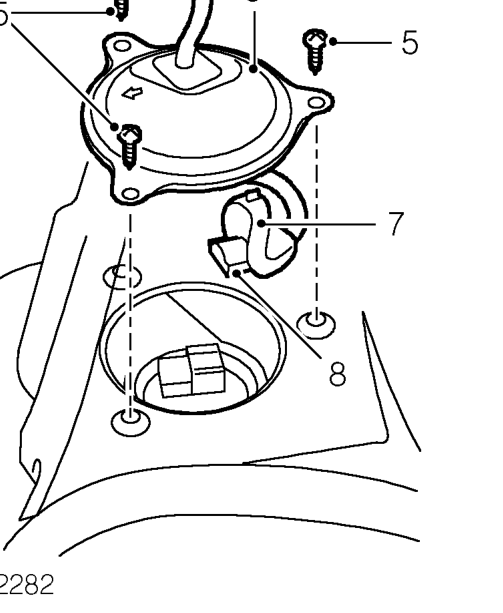

Fuel tank – Lower RH rear seat squab.
  1. Remove 3 screws securing tank unit access cover.
  2. Release cover and move aside.
  3. Remove rubber cover from tank unit multiplug.
  4. Disconnect multiplug.
  5. Raise rear of vehicle.

WARNING: Support on safety stands.

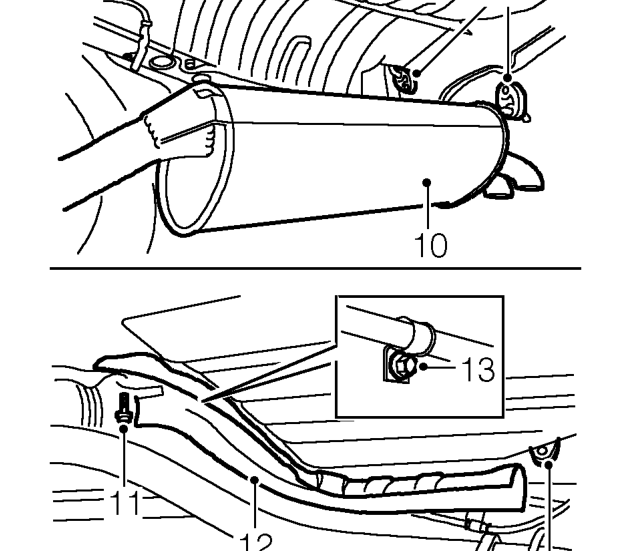

Warning: support on safety stands. – Raise rear of vehicle.
  1. Release 3 rubber exhaust mountings from tail pipe, lower pipe for access to fuel tank heat shield and support pipe.
  2. Remove 5 bolts securing fuel tank heat shield.
  3. Remove shield.
  4. Remove bolt securing handbrake RH cable clip to body.

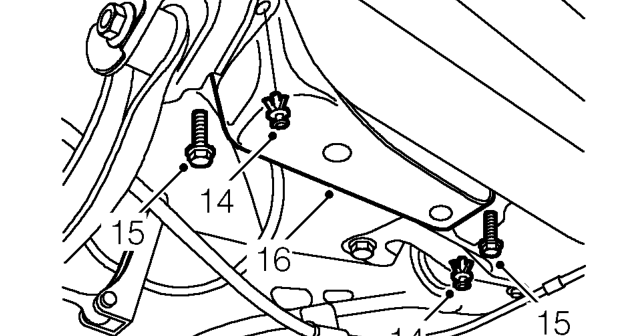

Warning: support on safety stands. – Remove bolt securing handbrake RH cable clip to body.
  1. Remove 2 scrivets securing fuel pipe guard.
  2. Remove 2 bolts securing fuel pipe guard.
  3. Remove guard.
