FRONT BEAM - ’L’ SERIES

Service repair no - 60.35.21

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove engine lower steady bar. See ENGINE - ’L’ SERIES, Repairs.

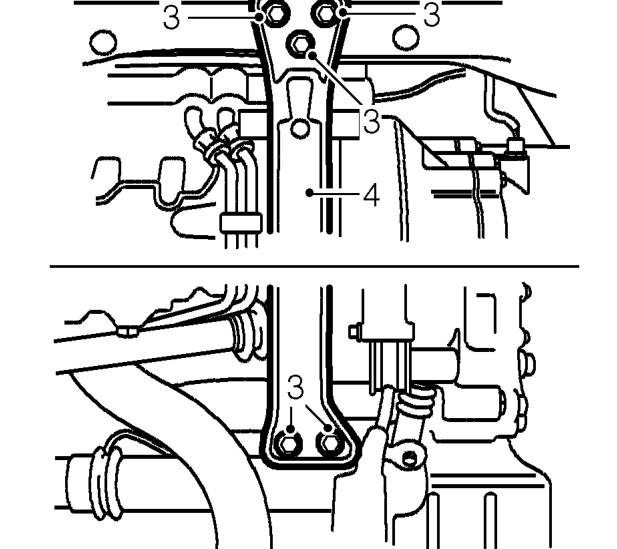

3. Remove 5 bolts securing centre beam to front and rear beams.
4. Remove centre beam.

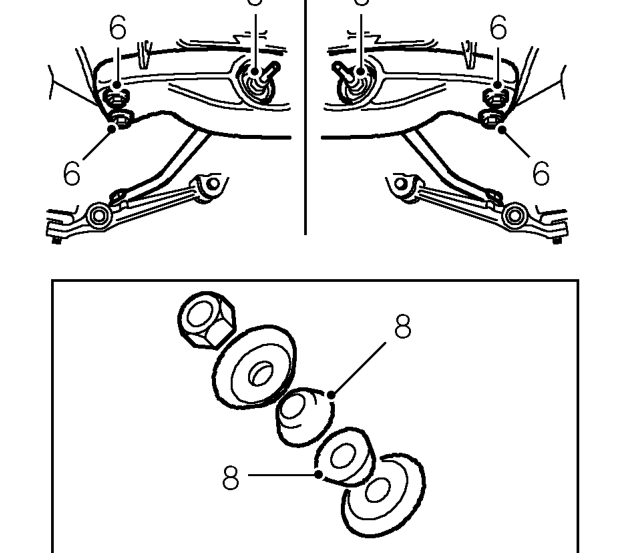

5. Remove 2 nuts securing tie bars to front beam and collect both washers.
6. Remove 4 bolts securing front beam to body.
7. Release front beam from tie bars and remove.
8. Remove tie bar rubbers from front beam.

Refit

1. Fit front beam to tie bars and secure with bolts. Tighten bolts to 69 Nm.
2. Fit tie bar rubbers to tie bars.
3. Fit washers and nuts to tie bars and tighten nuts to 68 Nm.
4. Position centre beam to vehicle and secure with bolts. Tighten bolts to 55 Nm.
5. Fit engine lower steady bar. See ENGINE - ’L’ SERIES, Repairs.
6. Remove stand(s) and lower vehicle.
