Power steering pump - ’l’ series - models with air conditioning (page 2 of 2)

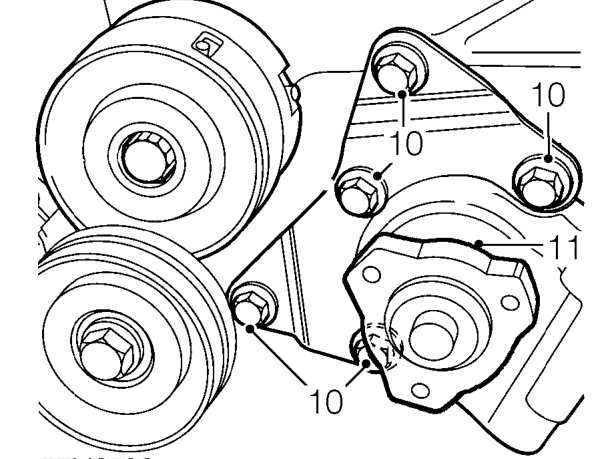

10. Remove 5 bolts securing PAS pump clamping bracket to mounting.
11. Remove clamping bracket and collect pump.

Refit

1. Position pump and clamping bracket to mounting.
2. Fit bolts securing clamping bracket to mounting and tighten to 25 Nm.
3. Fit hose to pump and secure with clip.
4. Fit pulley to pump and secure with Torx screws. Tighten screws to 25 Nm.
5. Fit banjo bolt and NEW washers to hose and fit to PAS pump. Tighten bolt to 20 Nm.
6. Remove drain tin.
7. Fit auxiliary drive belt. See ELECTRICAL, Repairs.
8. Remove stand(s) and lower vehicle.
9. Bleed power steering system. See Adjustments.
