SteeringCAUTION: Plug the connections.

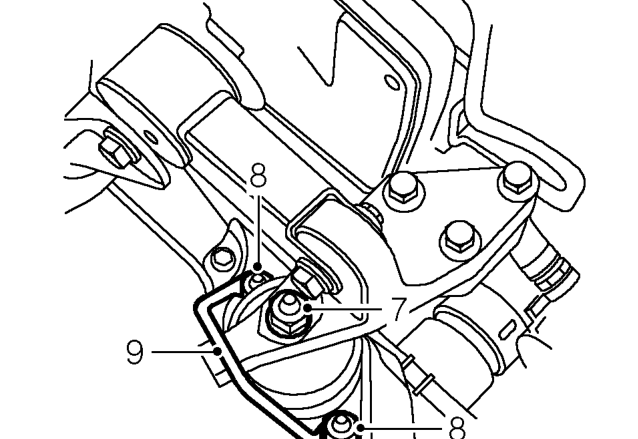

Diagram
  1. Loosen nut securing engine mounting bracket to mounting.
  2. Remove nuts securing engine mounting and restraint bar to body.
  3. Remove restraint bar.
  4. Raise engine on jack sufficiently only to access PAS pump pulley screws.

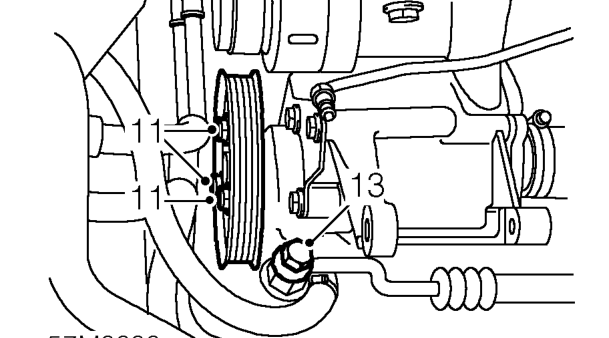

Raise engine on jack sufficiently only to access PAS pump pulley screws.
  1. Remove 3 Torx screws securing pulley to pump and remove pulley.
  2. Position container to collect fluid loss from power steering system.
  3. Remove banjo bolt securing high pressure pipe to steering pump.
  • CAUTION: To prevent damage to
  • components, use two spanners when
  • loosening or tightening unions.
  1. Remove and discard 2 sealing washers.
Remove and discard 2 sealing washers.

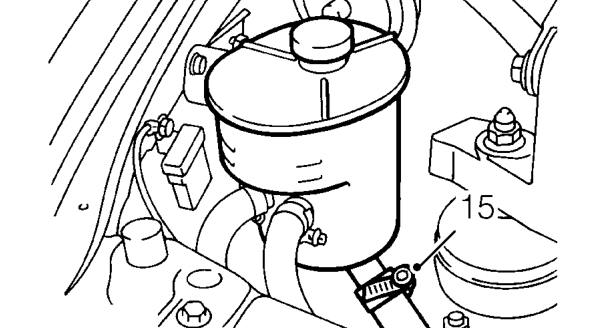

  1. Loosen clip and disconnect power steering pump feed hose from fluid reservoir.

CAUTION: Plug the connections.

Caution: plug the connections. – Loosen clip and disconnect power steering pump feed hose from fluid reservoir.

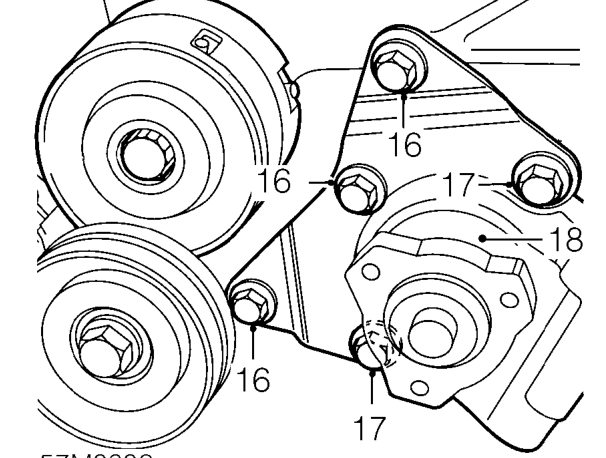

  1. Remove 3 short bolts securing support bracket to power steering pump and coolant pump mounting.
  2. Remove 2 long bolts securing power steering pump to coolant pump mounting.
  3. Remove power steering pump.
  4. Loosen clip and remove feed hose from pump.
