POWER STEERING PUMP DRIVE BELT - 2.0 AND 2.3

Service repair no - 57.20.02

Remove

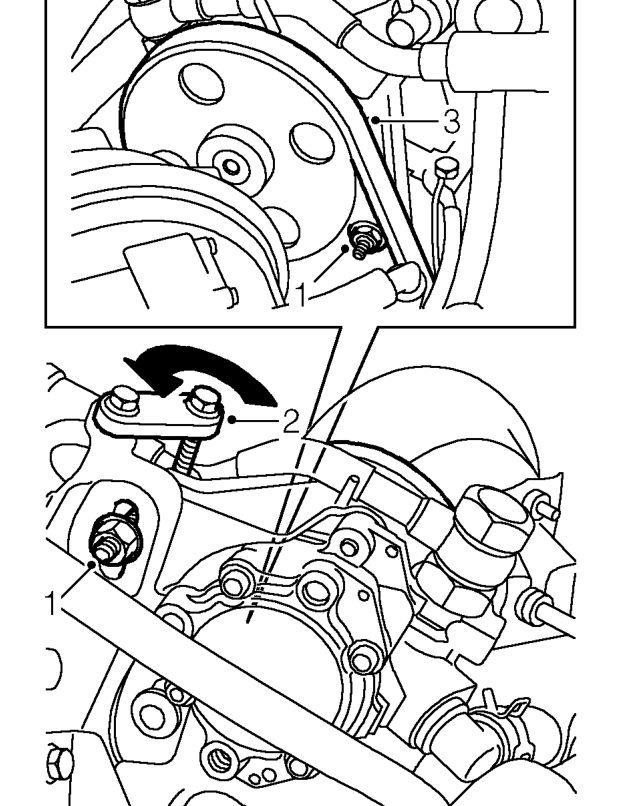

Power steering pump drive belt - 2.0 and 2.3 – Service repair no - 57.20.02
  1. Loosen power steering pump nuts.
  2. Release drive belt tension by turning the tension adjusting bolt anti-clockwise
  3. Remove and discard drive belt.

Refit

  1. Clean pulley ’V’s.
  2. Fit new drive belt to crankshaft pulley and connect to power steering pump pulley, ensure belt is located correctly in pulley grooves.
  3. Adjust drive belt tension. See Adjustments.

POWER STEERING PUMP - 2.0 AND 2.3

Service repair no - 57.20.14

Remove

  1. Remove power steering pump drive belt. See this section.
  2. Position container to collect fluid.

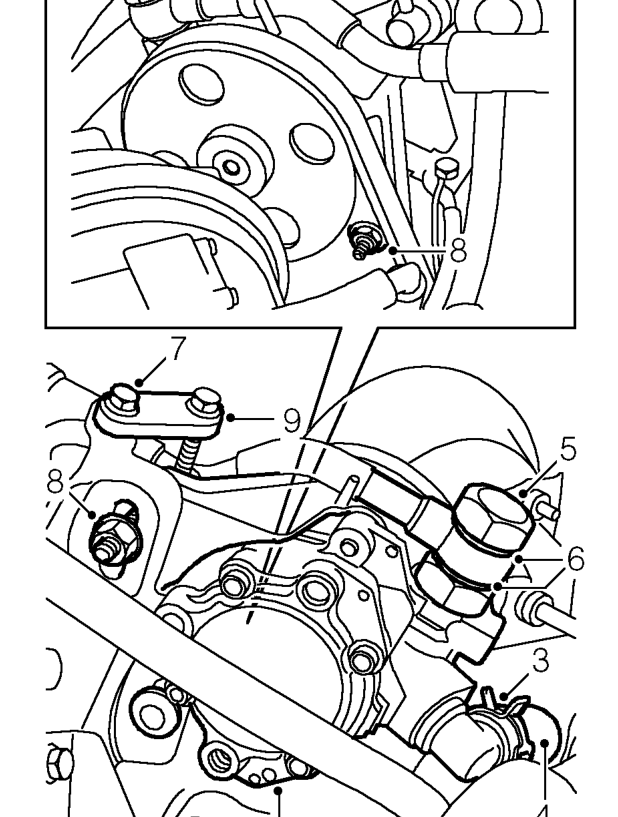

Power steering pump - 2.0 and 2.3 – Position container to collect fluid.
  1. Release clip securing fluid inlet hose to power steering pump.
  2. Disconnect fluid inlet hose from power steering pump.

CAUTION: Plug the connections.
