CAUTION: Plug the connections.

5. Remove banjo bolt securing fluid outlet hose to PAS pump.
6. Remove and discard 2 sealing washers.

CAUTION: Plug the connections.

7. Remove bolt securing adjuster plate to PAS pump mounting bracket.
8. Remove nuts securing pump to bracket.
9. Remove lower bolt and adjuster.
10. Remove power steering pump.

Refit

1. Fit new power steering pump.
2. Fit lower bolt and adjuster.
3. Fit bolt securing adjuster plate to mounting bracket. fit nuts to secure pump.
4. Remove plug from fluid inlet hose and PAS pump.
5. Connect hose to pump and secure with clip.
6. Remove plugs from pump and outlet hose.
7. Connect outlet hose to pump and using new sealing washers, tighten banjo bolt to 55 Nm.
8. Fit drive belt. See this section.
9. Bleed power steering system. See Adjustments.

POWER STEERING RACK - ’L’ SERIES

Service repair no - 57.10.01

Remove

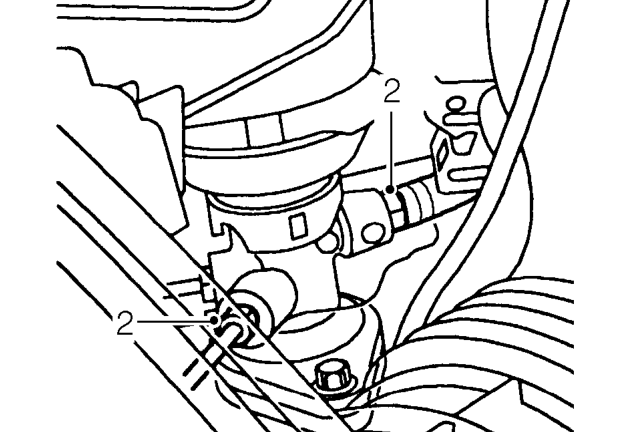

1. Position container beneath PAS rack to collect fluid.

2. Loosen both unions and disconnect feed and return pipes from PAS rack.

CAUTION: Plug the connections.

3. Remove steering wheel. See REPAIR MANUAL - Steering, Repairs.

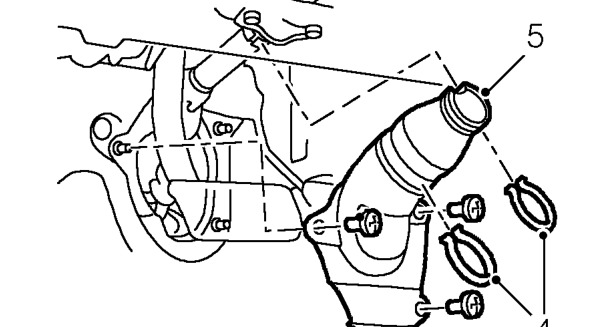

4. Remove 2 clips securing column universal joint cover.
5. Pull back driver’s footwell carpet and remove 3 studs securing cover to floor. Remove cover.
6. Align road wheels to straight ahead position and remove ignition/starter switch key to lock steering.
