POWER STEERING RACK - 2.0 AND 2.3

Service repair no - 57.10.01

Remove

Power steering rack - 2.0 and 2.3 – Service repair no - 57.10.01

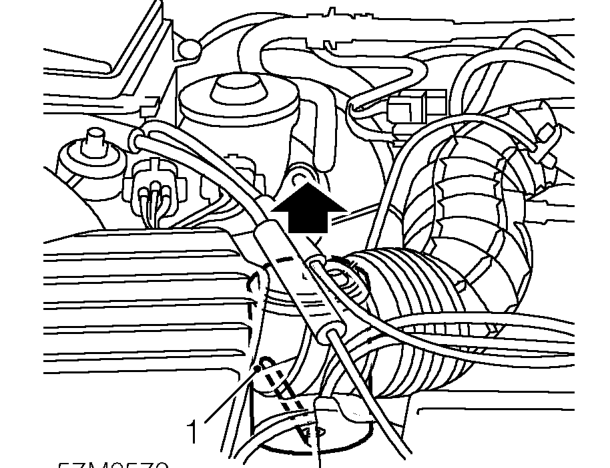

  1. Release evaporative emission canister from its bracket, disconnect vent tube and move canister for access to PAS rack fluid pipe unions.
  2. Position container beneath PAS rack to collect fluid.
Power steering rack - 2.0 and 2.3 – Position container beneath PAS rack to collect fluid.

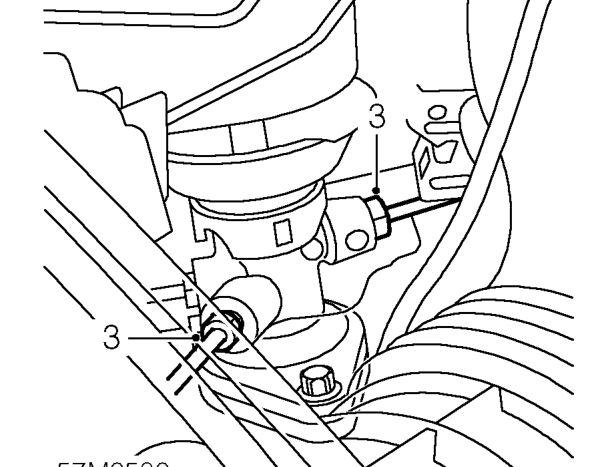

  1. Loosen both unions and disconnect feed and return pipes from PAS rack.

CAUTION: Plug the connections.

  1. Remove steering wheel. See REPAIR MANUAL - Steering.
Caution: plug the connections. – Remove steering wheel. See REPAIR MANUAL - Steering.

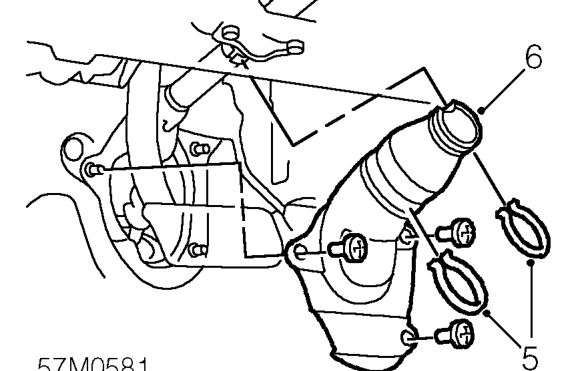

  1. Remove 2 clips securing column universal joint cover.
  2. Pull back driver’s footwell carpet and remove 3 studs securing cover to floor. remove cover.
  3. Align road wheels to straight ahead position and remove ignition/starter switch key to lock steering.
Caution: plug the connections. – Align road wheels to straight ahead position and remove ignition/starter switch key to loc

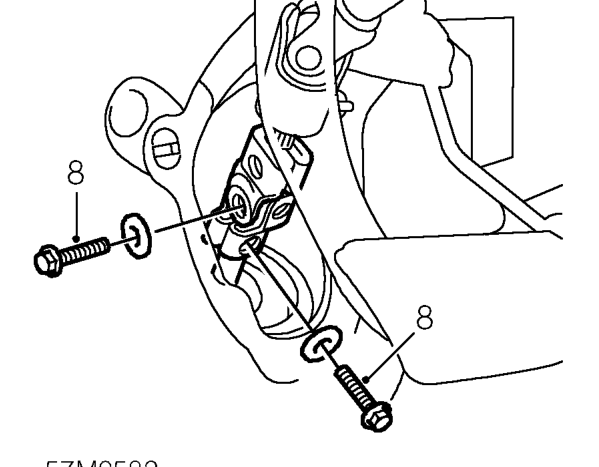

  1. Remove 2 bolts securing column universal joint, slide joint up column to disconnect from steering rack pinion.
