POWER STEERING PUMP DRIVE BELT - 2.0 AND 2.3

Service repair no - 57.20.01

Check

  1. Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.
Power steering pump drive belt - 2.0 and 2.3 – Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.

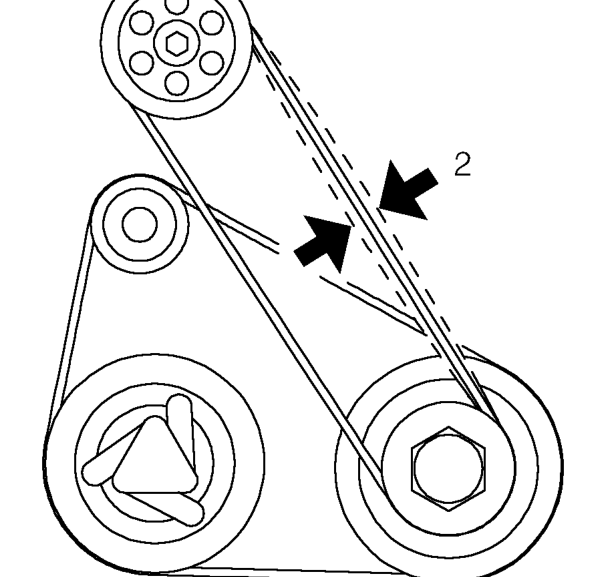

  1. Apply a force of 98 Nm, 10 kg to the steering drive belt at position indicated and measure the deflection between the crankshaft pulley and power steering pump pulley. Drive belt deflection: Used belt = 13.0 - 16.0 mm New belt = 11.0 - 12.5 mm

Adjust

Power steering pump drive belt - 2.0 and 2.3 – Apply a force of 98 Nm, 10 kg to the steering drive belt at position indicated and measure

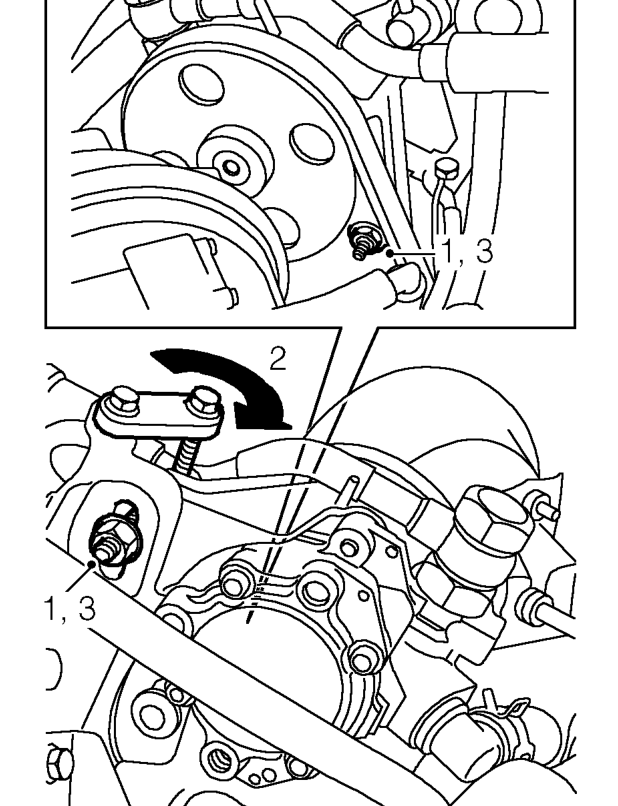

  1. Loosen power steering pump mounting nuts.
  2. Increase drive belt tension by turning the tension adjusting bolt clockwise.
  3. Tighten power steering pump mounting nuts to 22 Nm.
  4. Recheck drive belt tension.
