Engine management system - EDCFuel shut-off solenoid

FUEL SHUT-OFF SOLENOID

Service repair no - 18.30.07

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See BODY, Exterior fittings.

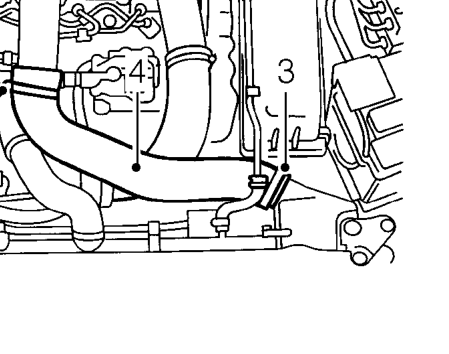

Fuel shut-off solenoid – Remove engine acoustic cover. See BODY, Exterior fittings.
  1. Loosen clips securing hose to plenum and intercooler.
  2. Remove hose.
  3. Clean top of injection pump around solenoid.
  4. Position absorbent cloth around solenoid to absorb any fuel spillage.

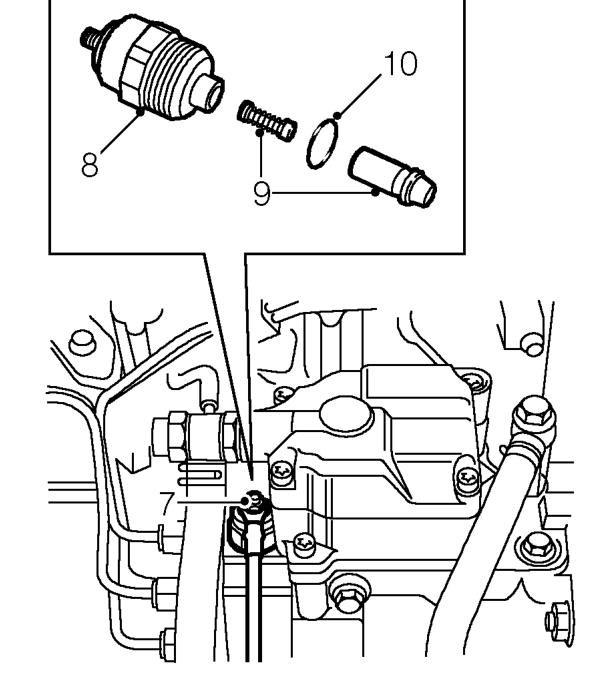

Fuel shut-off solenoid – Position absorbent cloth around solenoid to absorb any fuel spillage.
  1. Remove nut and disconnect lead from solenoid.
  2. Using a 24 mm spanner, remove solenoid from injection pump.
  3. Collect solenoid plunger and spring.
  4. Remove and discard ’O’ ring from solenoid.

Refit

  1. Lubricate and fit new ’O’ ring to solenoid.
  2. Clean solenoid plunger and spring.
  3. Fit spring and plunger to solenoid.
  4. Fit solenoid to injection pump and tighten to 20 Nm.
  5. Connect lead to solenoid, fit nut and tighten to 2.5 Nm. Remove absorbent cloth.
  6. Fit hose to intercooler and plenum and tighten clips.
  7. Fit engine acoustic cover. See BODY, Exterior fittings.
  8. Connect battery earth lead.
