09 · Steering & suspension

WARNING: Support on safety stands.

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › WARNING: Support on safety stands.
SteeringWARNING: Support on safety stands.
Diagram

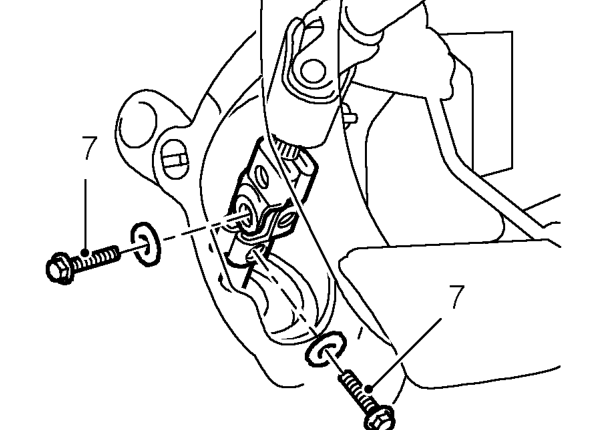

  1. Remove 2 bolts securing column universal joint, slide joint up column to disconnect from steering rack pinion.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove exhaust front pipe. See REPAIR MANUAL - Manifold and Exhaust Systems, Repairs.
Warning: support on safety stands. – Remove exhaust front pipe. See REPAIR MANUAL - Manifold and Exhaust Systems, Repairs.

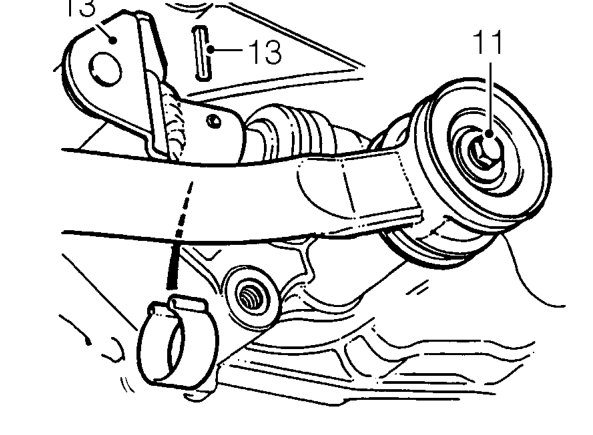

  1. Remove bolt and disconnect gear change steady bar from gearbox.
  2. Collect 2 washers.
  3. Using a suitable punch, drive out roll pin and disconnect selector rod from shaft.
Warning: support on safety stands. – Using a suitable punch, drive out roll pin and disconnect selector rod from shaft.

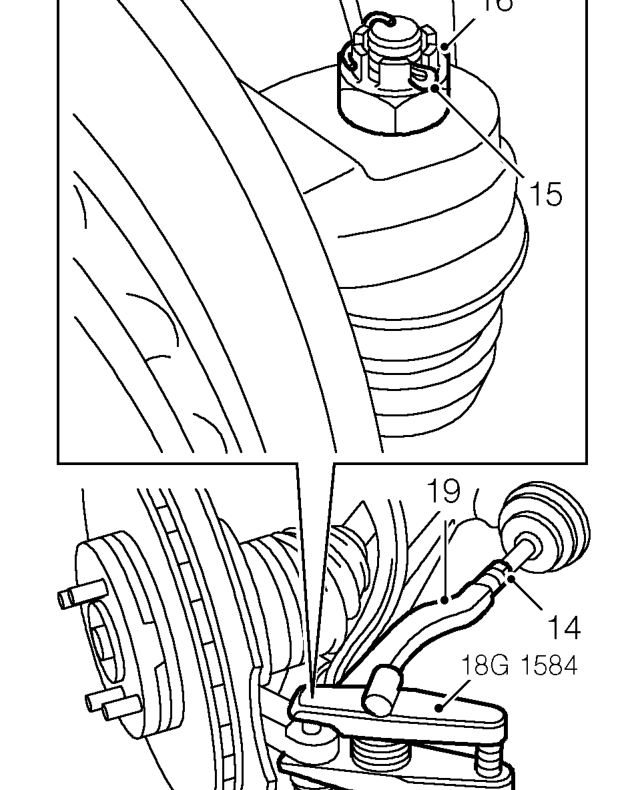

  1. Loosen RH and LH tie-rod end locknuts.
  2. Remove split pins from tie-rod end ball joint nuts. Discard split pins.
  3. Remove 2 ball joint nuts and break taper joints using tool 18G 1584.
  4. Note number of threads exposed from each locknut for refitting reference.
  5. Pull rack fully to passenger side, steering rack on full lock.
  6. Remove tie-rod ends.
