Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Drivers seat switch

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts › Drivers seat switch
BodyDrivers seat switch · page 1 of 2

Refit

  1. Fit motor pack to cross member of new slide rails and secure with bolts.
  2. Connect drive gears to splines and secure with Torx screws.
  3. Connect harness to cross member.
  4. Connect motor drive shafts.
  5. Align assembly and fit 8 Torx screws.
  6. Secure harness clip.
  7. Connect springs.
  8. Connect multiplugs to control unit.
  9. Fit outer valance and secure with 3 Torx screws.
  10. Fit inner valance.
  11. Secure with 3 Torx screws.
  12. Align seat belt stalk, tighten bolt to 33 Nm
  13. Fit drivers seat. See this section.

DRIVERS SEAT SWITCH

Service repair no - 78.70.89

Remove

  1. Remove drivers seat. See this section.

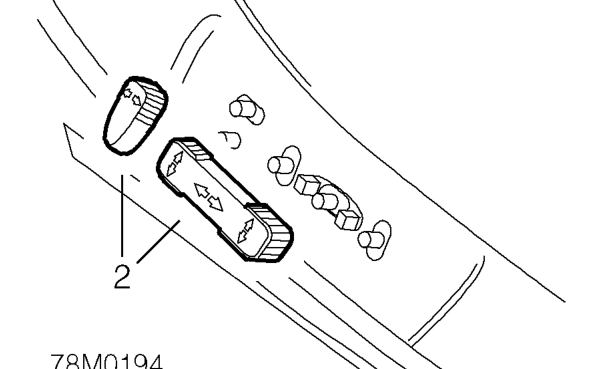

Drivers seat switch – Remove drivers seat. See this section.
  1. Carefully prise off switch knobs.
