Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Drivers seat switch (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts
BodyDrivers seat switch · page 2 of 2
Diagram

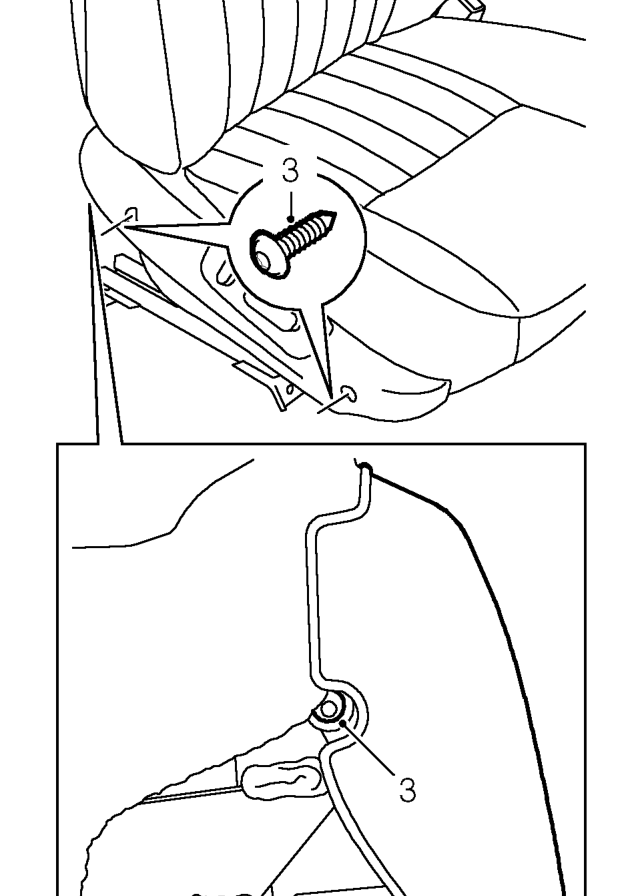

  1. Remove 3 T20 Torx screws securing seat outer valance.

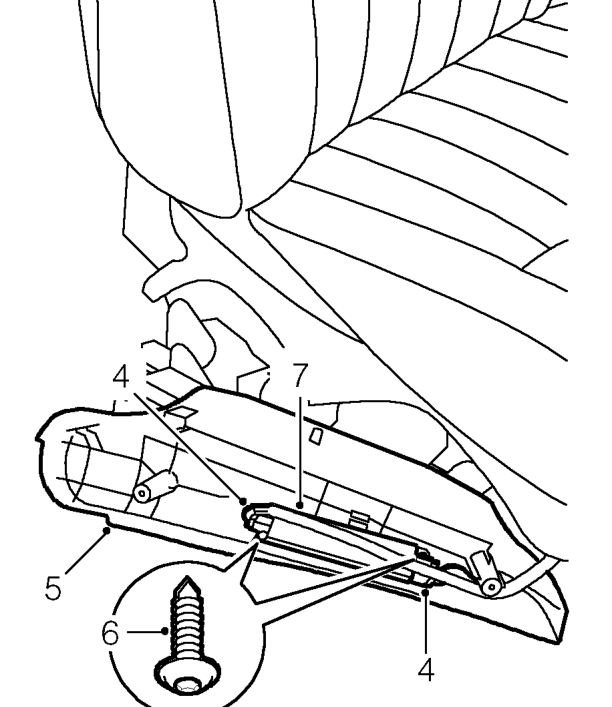

Remove 3 T20 Torx screws securing seat outer valance.
  1. Disconnect 2 multiplugs from switch.
  2. Remove seat outer valance.
  3. Remove 2 T20 Torx screws securing switch to outer valance.
  4. Remove control switch unit.

Refit

  1. Fit switch to outer valance and secure with Torx screws.
  2. Connect multiplugs to control switch.
  3. Secure outer valance to seat with Torx screws.
  4. Fit switch knobs.
  5. Fit seat. See this section.
