Workshop Manuals Factory service & repair Rover
Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Front seat tilt motor

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts › Front seat tilt motor
BodyFront seat tilt motor · page 1 of 2

FRONT SEAT TILT MOTOR

Service repair no - 78.70.29

Remove

  1. Remove front seat. See this section.
Front seat tilt motor – Remove front seat. See this section.

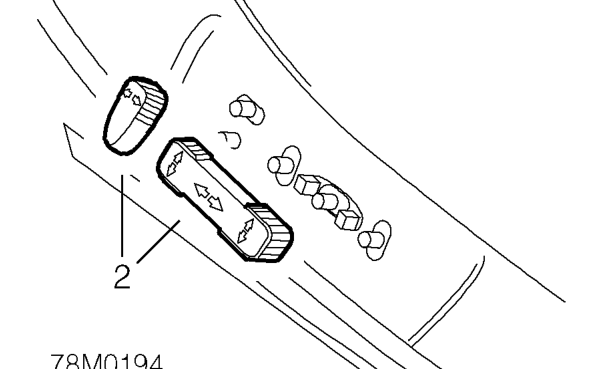

  1. Carefully prise off switch knobs.
Front seat tilt motor – Carefully prise off switch knobs.

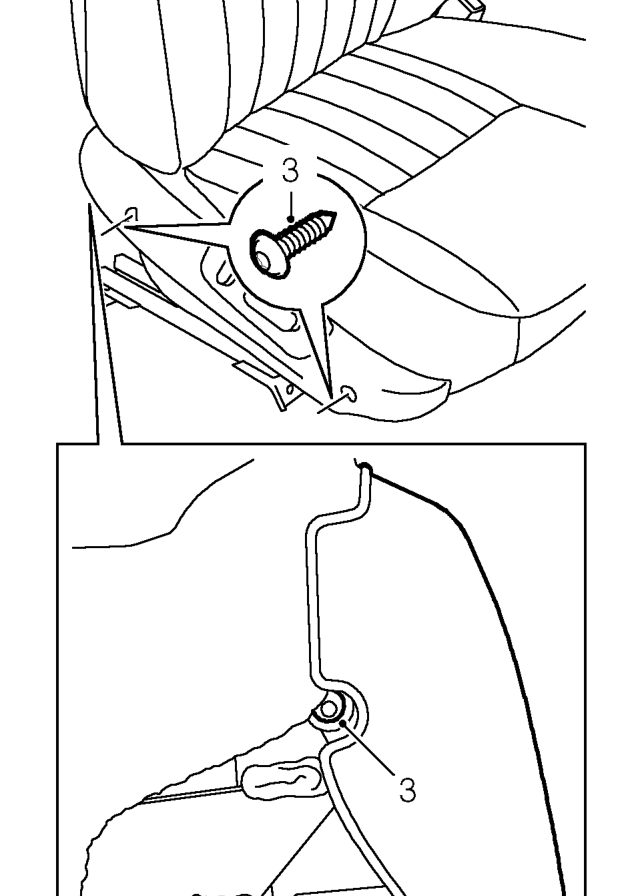

  1. Remove 3 T20 Torx screws securing seat outer valance.
