BodyFront seat tilt motor · page 2 of 2
Diagram
  1. Disconnect 2 multiplugs from control switch unit.

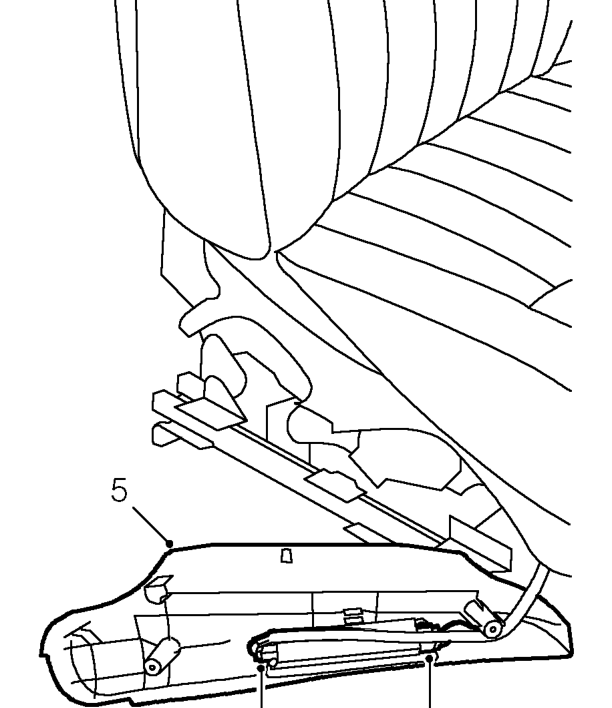

  2. Remove seat outer valance.
Remove seat outer valance.

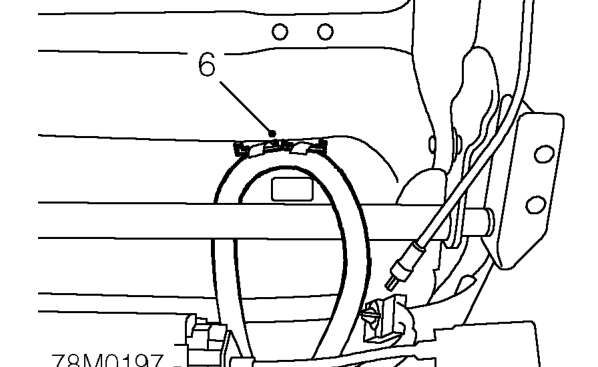

  1. Release seat harness from seat.
Release seat harness from seat.

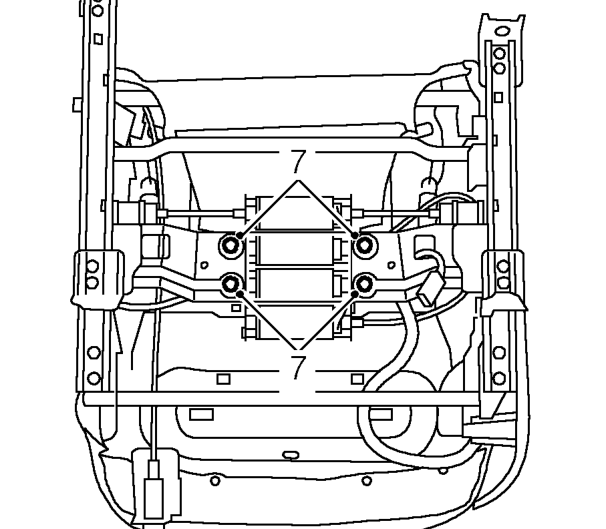

  1. Remove 4 bolts securing motor assembly to seat.
Remove 4 bolts securing motor assembly to seat.

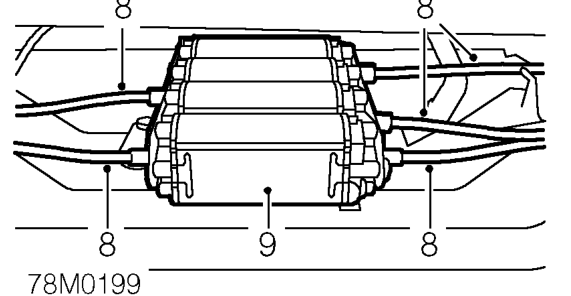

  1. Remove drive cables from motors.
  2. Remove motor assembly complete with harness from seat.
