Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Slides electric drivers seat - set (page 4 of 4)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts
BodySlides electric drivers seat - set · page 4 of 4
Diagram

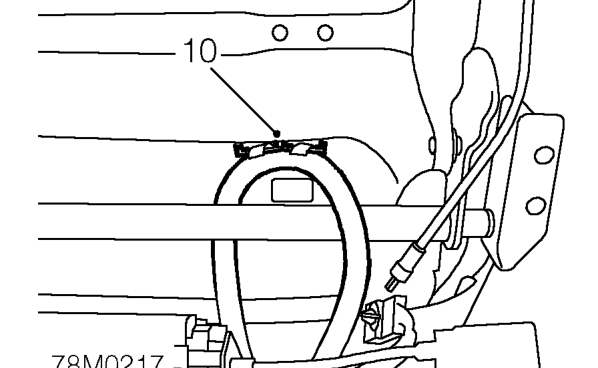

  1. Disconnect harness from seat.
Disconnect harness from seat.

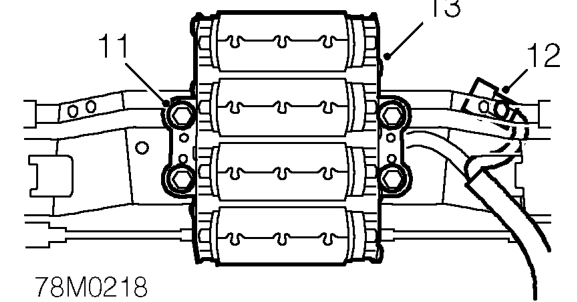

  1. Remove 4 bolts securing motor pack to cross member.
  2. Disconnect harness from cross member.
  3. Remove motor pack.
Remove motor pack.

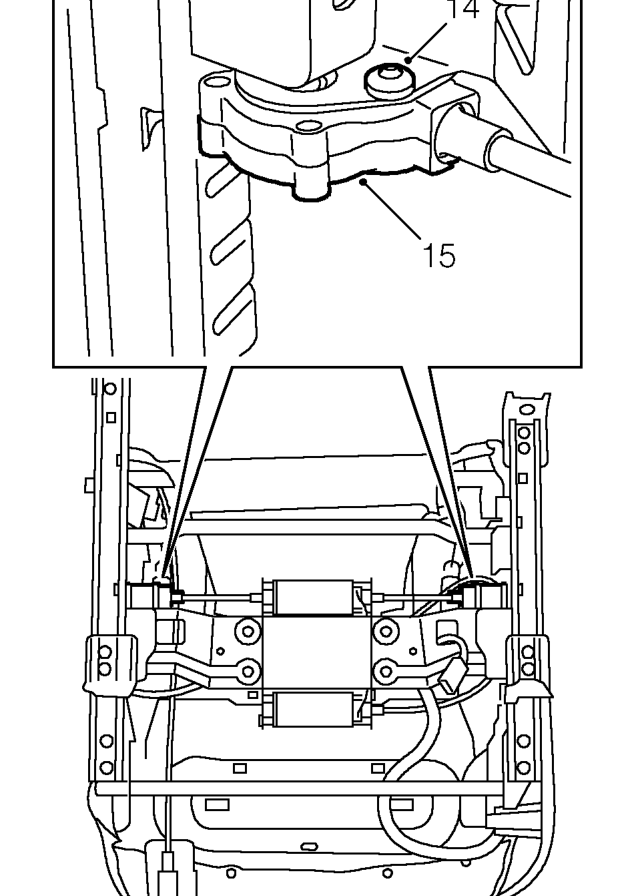

  1. Remove 2 T20 Torx screws securing slide motor drive gears.
  2. Disconnect drive gears from splines.
  3. Remove slide rails.
