Workshop Manuals Factory service & repair Rover
Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Slides electric drivers seat - set (page 3 of 4)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts
BodySlides electric drivers seat - set · page 3 of 4
Diagram

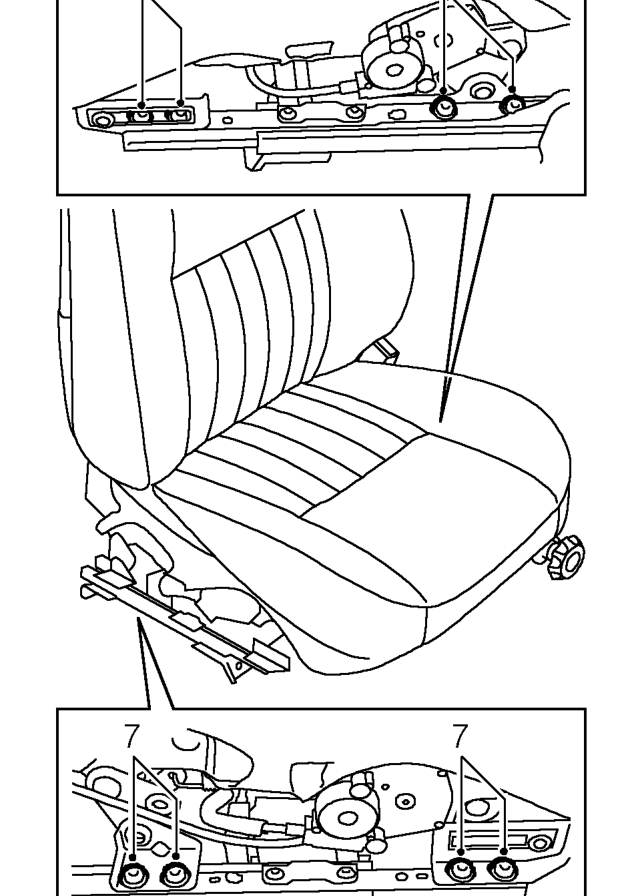

  1. Remove 8 T40 Torx screws securing slide rails to seat frame.
Remove 8 T40 Torx screws securing slide rails to seat frame.

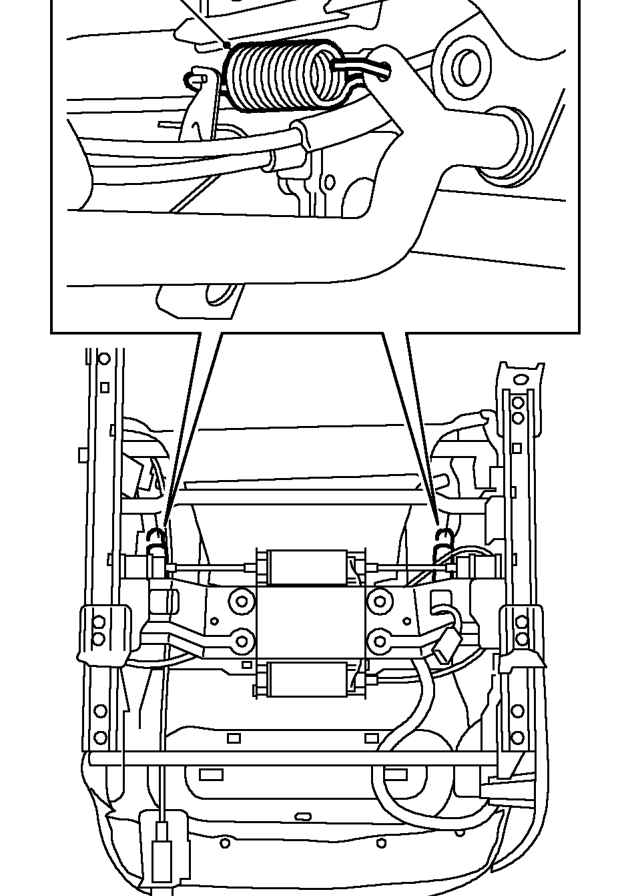

  1. Release tensioning springs.
Release tensioning springs.

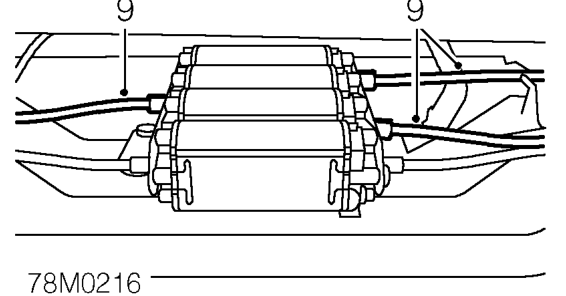

  1. Disconnect drive shafts from front tilt, rear tilt and reclining motors.
