Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Rear seat belt - centre (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts
BodyRear seat belt - centre · page 2 of 2

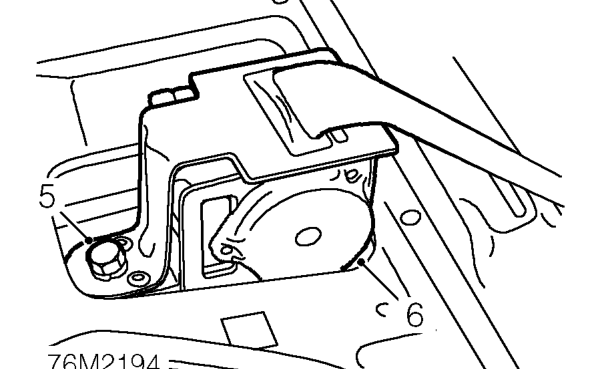

Diagram
  1. Remove bolt securing seat belt reel to shelf panel.
  2. Remove seat belt.

Refit

  1. Fit reel to shelf panel and tighten bolt to 32 Nm.
  2. Fit rear shelf. See REPAIR MANUAL - Body.
  3. Extend seat belt and align to floor mounting point.
  4. Tighten bolt to 32 Nm.
  5. Fit rear seat cushion. Fit and tighten bolt.
