Rover 600 Repair Manual Supplement (1993-1999)12 · Body
12 · Body & interior

Electrically operated drivers seat (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Seats and seat belts
BodyElectrically operated drivers seat · page 2 of 2

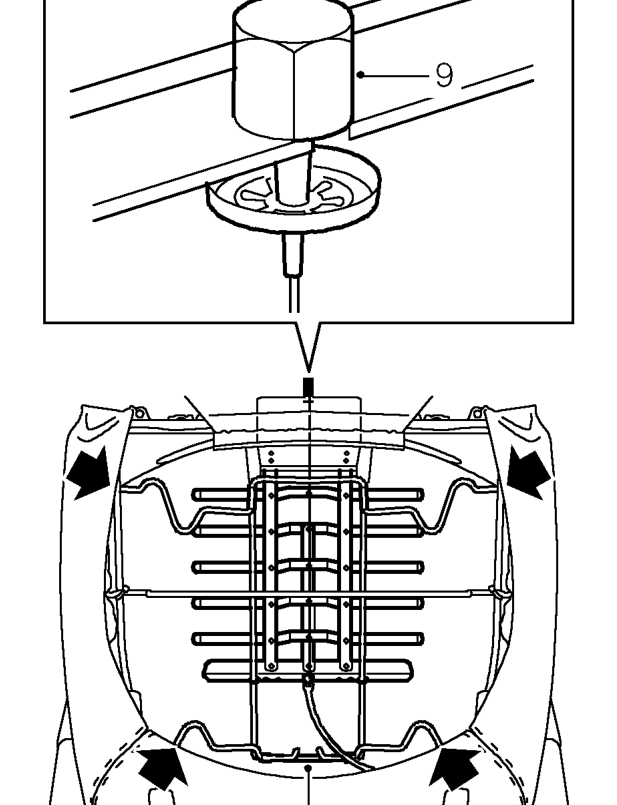

Diagram
  1. Push down on mechanism at each corner to release it from seat frame.
  2. Remove mechanism from rear of seat.
  3. Release clip and inner cable from mechanism.
  4. Remove mechanism from cable.

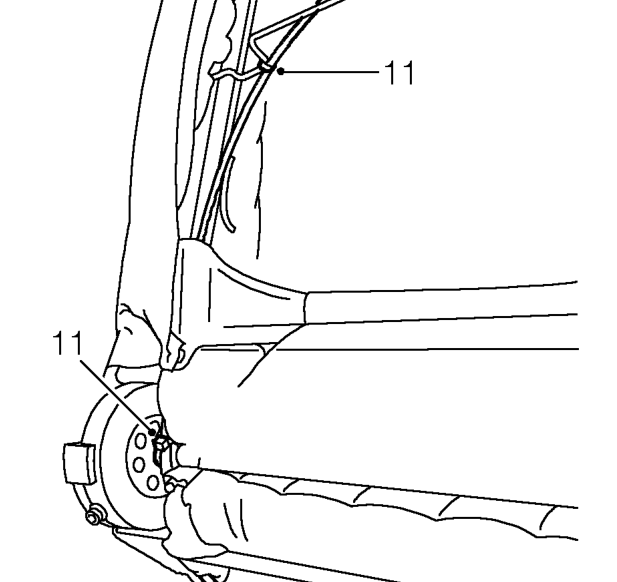

Remove mechanism from cable.
  1. Remove 2 ties securing cable.

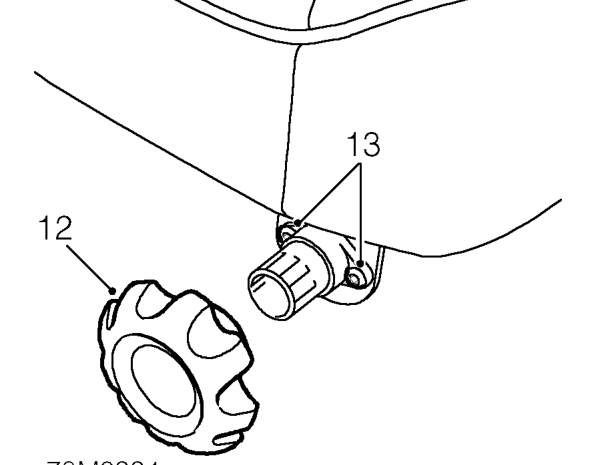

Remove 2 ties securing cable.
  1. Remove lumbar adjustment knob.
  2. Remove 2 T20 Torx screws securing lumbar control cable to bracket.
  3. Remove cable.
