Tcm reset procedure

TCM RESET PROCEDURE

1. Turn the ignition switch off.

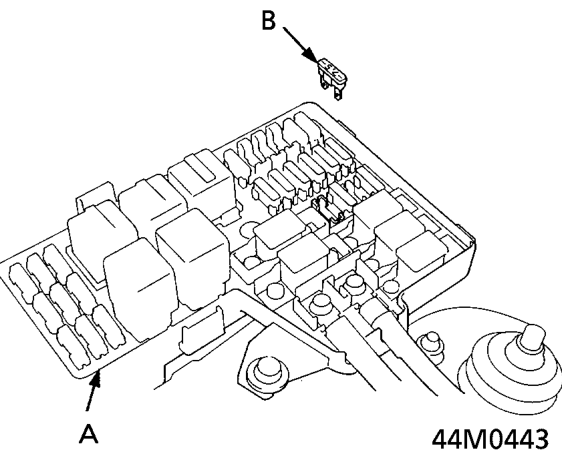

A Engine compartment fuse/relay box B BACK UP (RADIO) fuse (7.5A)

2. Remove the BACK UP (RADIO) fuse (7.5A) from the engine compartment fuse/relay box for 10 seconds to reset the TCM.

NOTE: Disconnecting the BACK UP (RADIO) fuse (7.5A) also cancels the radio preset stations and the clock setting. Make note of the radio presets before removing the fuse so that you can reset them.

Final procedure

NOTE: This procedure must be done after any fault finding.

1. Remove the jump wire from the service check connector.
2. Reset the TCM.
3. Set the radio preset stations and clock settings.
